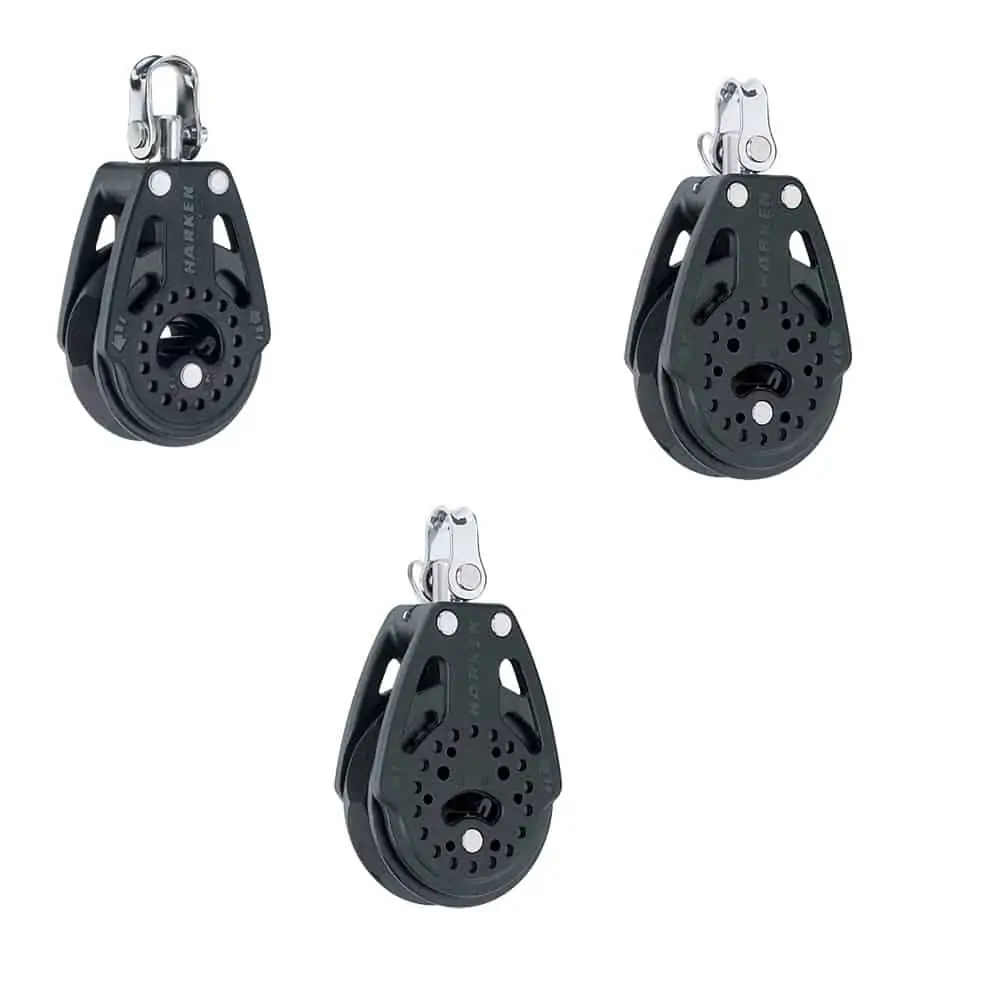

Carbo ratchet blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are hardcoat anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
40mm
The 40mm ratchet is ideal for jib sheets and spinnakers where size and weight are critical. It has an on/off switch.
57mm & 75mm
The 57mm and 75mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.
For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® block directly above for double holding power in heavy air and a free-running mainsheet when it’s light. The 75 mm provides up to 15:1 holding power; the 57 mm 10:1.
Sheave ∅ | Length | | | Weight | | | Shackle Pin ∅ | | | Maximum Line ∅ | | | Maximum Working Load | | | Breaking Load | |
40mm | 86mm | 49g | 4mm | 10mm | 136kg | 454kg | ||||||
57mm | 103mm | 85g | 5mm | 10mm | 227kg | 907kg | ||||||
75mm | 137mm | 227g | 6mm | 12mm | 341kg | 1361kg |
