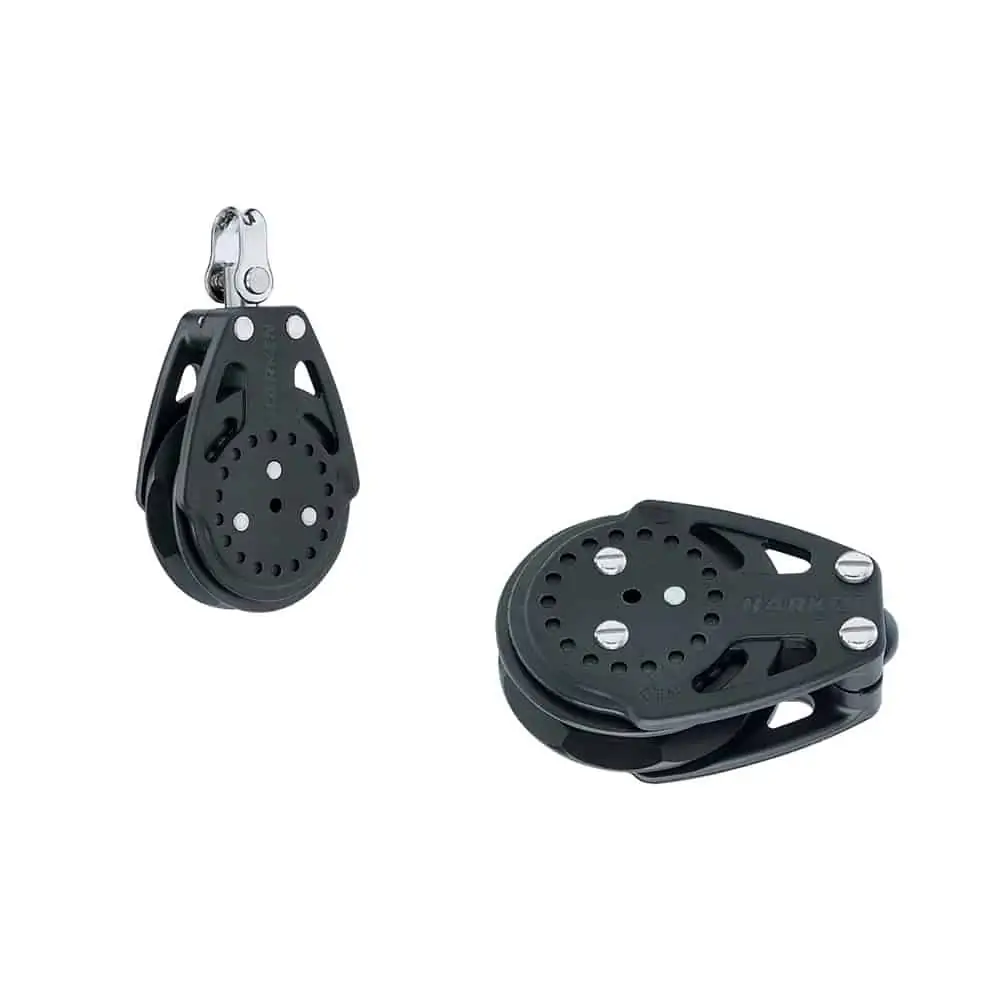

Harken 57mm Ratchamatic Carbo Blocks

Click on an image to display a larger detailed image.


Harken 57mm Ratchamatic Carbo Blocks


RRP £95.52






The Carbo Ratchamatic is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase.

Shifting between ratchet and light-air modes is seamless. Unloaded main and jib sheets run out freely during mark roundings and asymmetrical spinnakers free instantly during jibes.

Ratchet engagement may be adjusted to a higher or lower load according to strength and sailing style. The Ratchamatic cheek block mounts on either port or starboard. The holding power of the 57 mm is as high as 10:1.

For the ultimate system, mount a Ratchamatic block on the boom above a cockpit-mounted switchable ratchet to allow the mainsheet to run freely in light air and to double holding power in heavy air.

Cheek includes fasteners and mounting pad.

Part  | Sheave ∅  | Length  | Weight  | Shackle Pin ∅  | Maximum Line ∅  | Maximum Working Load  | Breaking Load  | Holding Power w/ 180° 50lb  | Fasteners
Swivel   57mm   103mm   104g   5mm   10mm   227kg   907kg   10:1   N/A
Cheek   57mm   83mm   89g   N/A   10mm   227kg   907kg   10:1   M4
Size/ColourPart NumberStock AvailabilityPrice
SwivelH2625 1 at 06/03 07:11 £89.95 Add to Basket
Cheek99047023 3 at 06/03 07:11 £91.95 Add to Basket
