Harken 40mm Carbo Blocks

£ 24.95 - £ 96.95

Clear

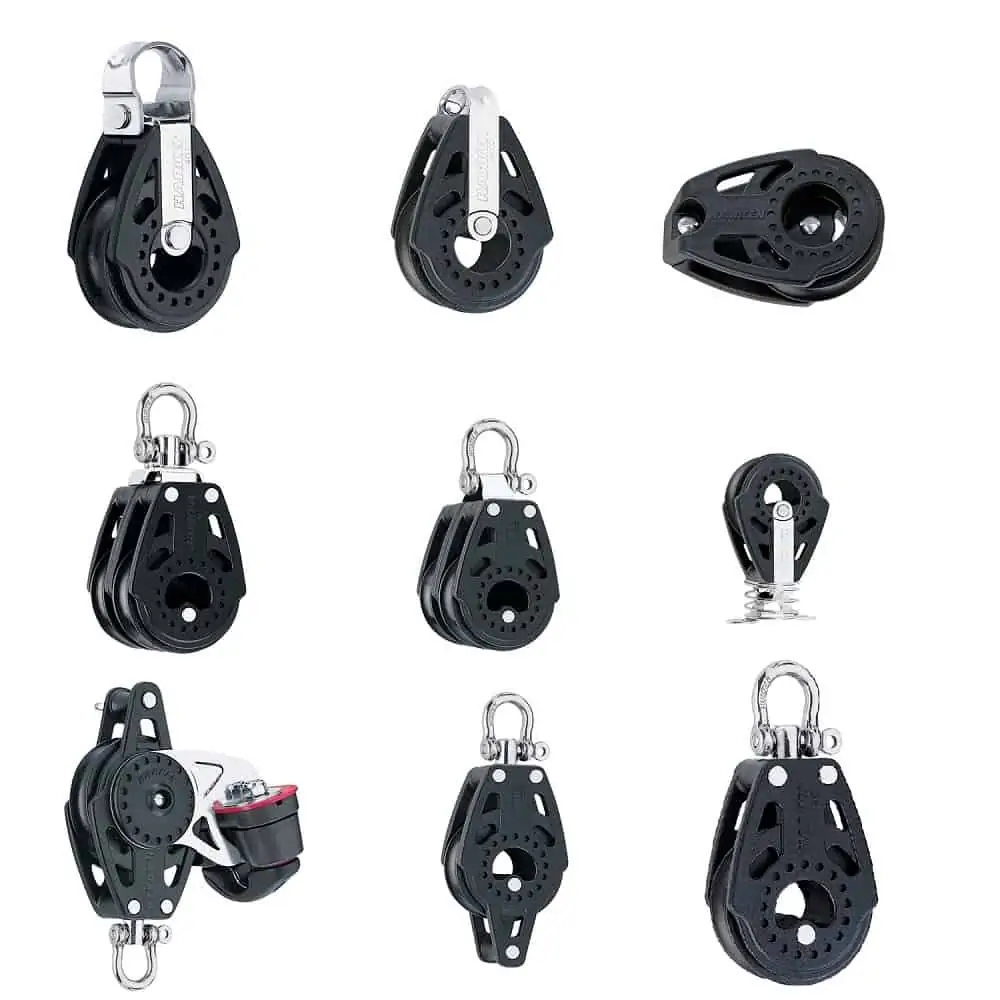

These smooth-running powerful performers make trimming easy, no matter how hard the wind blows. Carbo Air blocks are made of tough reinforced composite in a size and style to fit any system: singles, doubles, triples, quads; ratchets and fiddles; soft and hard attach. Perfect for main, jib and spinnaker sheets on dinghies and sportboats; control lines on boats of all sizes.

Lightweight, strong and reliable fiber-reinforced composite construction.

Ball bearings, sheave, and sideplates are UV-stabilized.

Low-friction Carbo Air blocks are lightweight, strong, reliable – and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.

<td class="nul

Part Number
Part
Port Solent
Warehouse
99046910
Block
2
1
99046880
Swivel
4
0
99046897
Swivel Becket
1
0
99351779
Swivel Becket Cam Cleat
2
0
99046927
Cheek
2
0
99046941
Stand Up
2
0
99046958
90°
1
0
99269241
Double
2
0
99046903
Double Swivel
3
0
Part   Sheave ∅  | Length  | Weight  | Shackle Pin ∅   | Maxmimum Line ∅  | Maximum Working Load  | Breaking Load
Block   40mm   64mm   40g   N/A   10mm   220kg   735kg

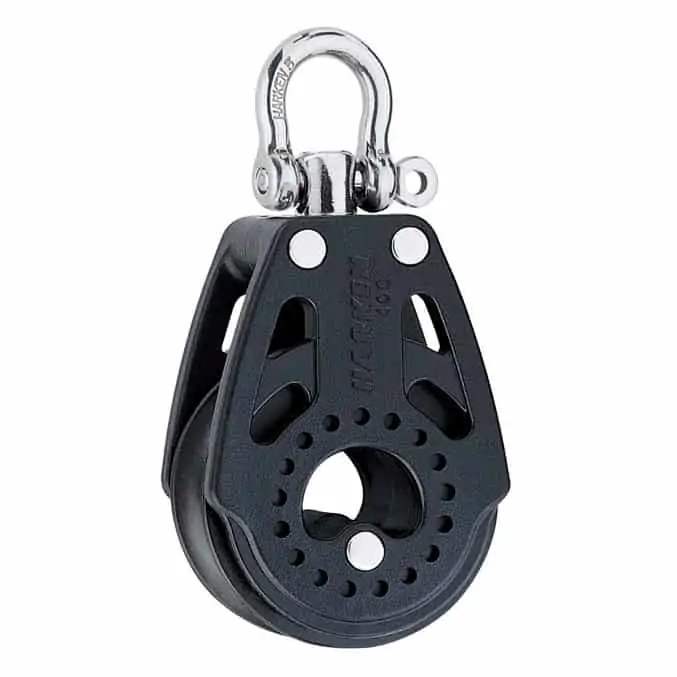

Swivel   40mm   86mm   44g   4mm   10mm   220kg   735kg
Swivel Becket   40mm   102mm   48g   4mm   10mm   220kg   735kg

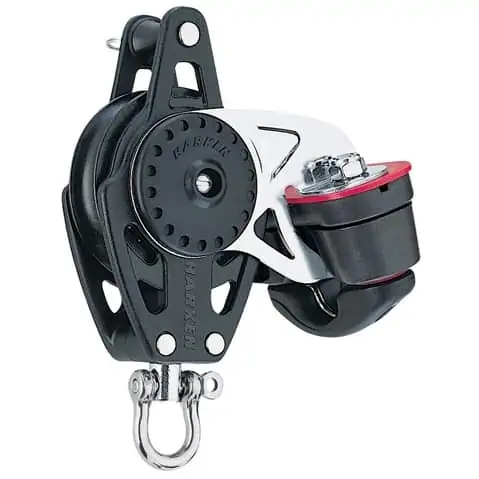

Swivel Becket Cam Cleat   40mm   102mm   122g   4mm   6mm   136kg   272kg
Cheek   40mm   70mm   34g   N/A   10mm   220kg   735kg
Stand Up   40mm   70mm   48g   N/A   10mm   220kg   735kg
90°   40mm   75mm   44g   N/A   10mm   220kg   735kg
Double   40mm
