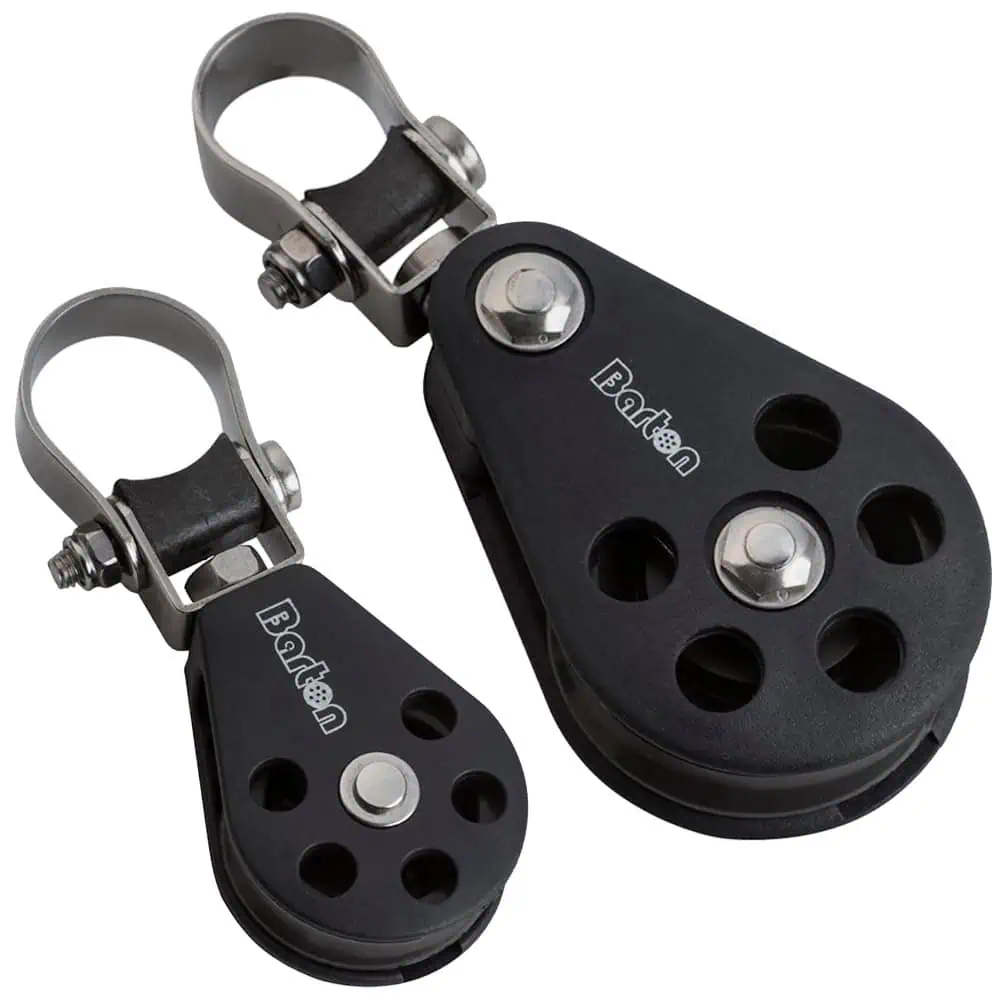

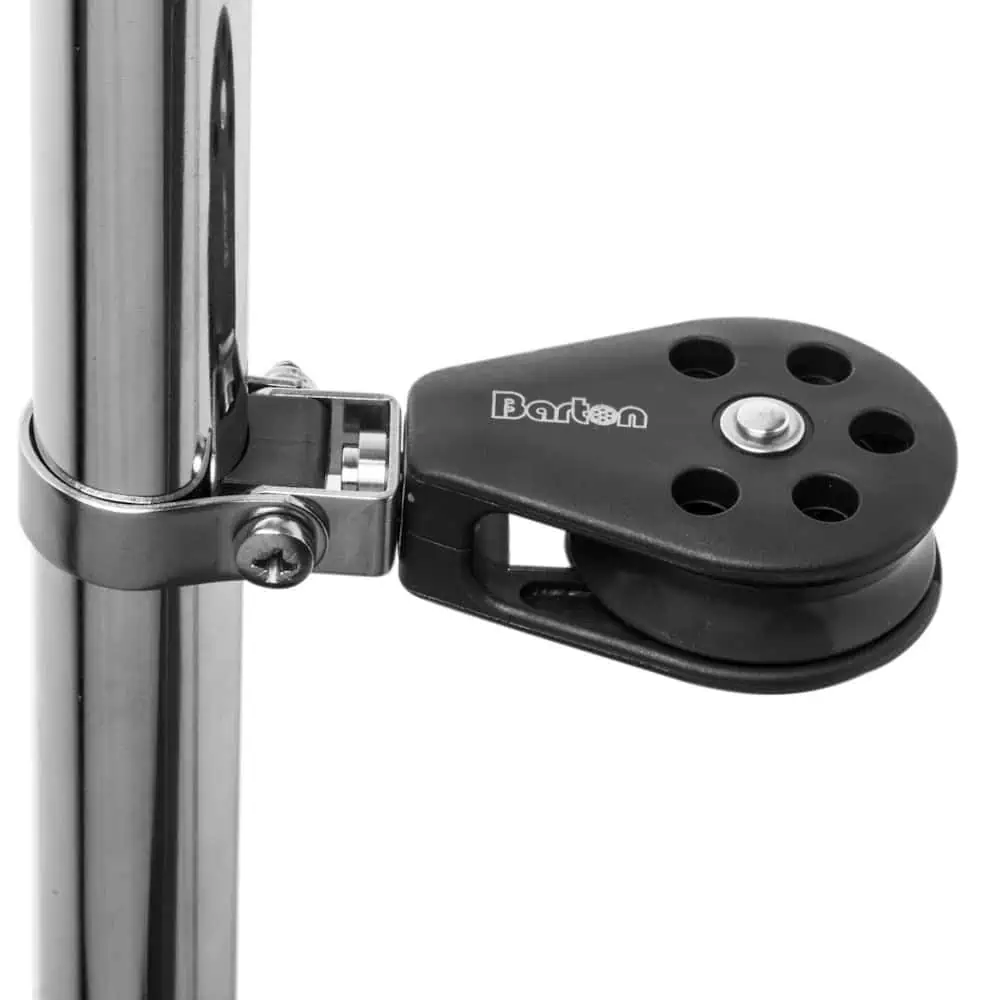

Barton Single Stanchion Lead Block
£19.95 - £42.95
Barton Single Stanchion Lead Block
| Size 2 | Size 3 | Size 5 | |
| Weight | 70 g | 93 g | 193 g |
| Dimensions | 97 × 38 × 24 mm | 112 × 47 × 28 mm | 135 × 58 × 37 mm |
| Sheave Size | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) |
| Max rope diameter | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) |
Part Number
Size / Colour
Port Solent
Warehouse
99544034
Size 2 / Plain
2
0
99544317
Size 2 / Ball Bearing
1
1
99544645
Size 3 / Plain
1
1
99544911
Size 3 / Ball Bearing
1
1
99545260
Size 5 / Plain
0
0
99545741
Size 5 / Ball Bearing
0
0
