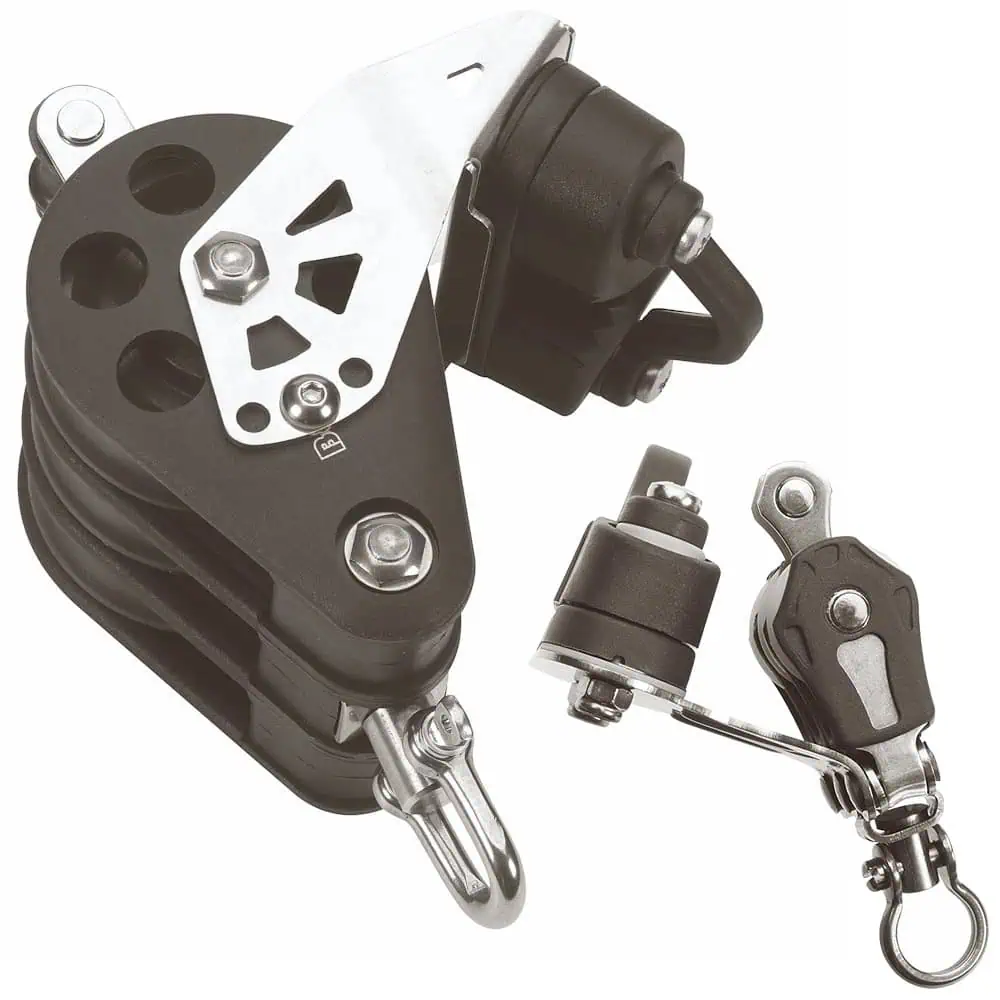

Barton Block Triple Swivel Becket and Cam
£67.95 - £179.95
Barton Block Triple Swivel Becket and Cam
Scroll to see more dimensions

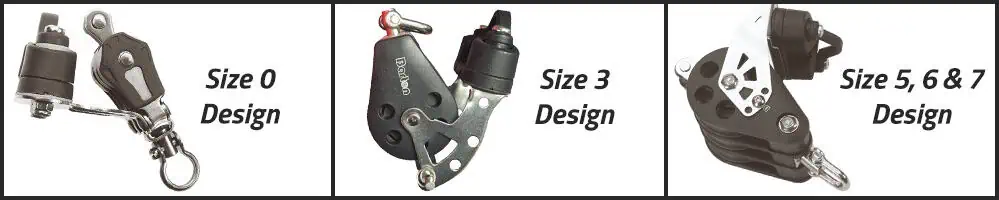

| Size 0 | Size 3 | Size 5 | Size 6 | Size 7 | |
| Weight | 112 g | 267 g | 606 g | 690 g | 890 g |
| Dimensions | 85 × 52 × 47 mm | 115 × 71 × 78 mm | 150 × 92 × 110 mm | 170 × 92 × 115 mm | 200 × 101 × 125 mm |
| Sheave Size | 20mm x 8mm (25/32″ x 5/16″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) | 64mm x 18mm (2 1/2″ x 45/64″) | 72mm x 20mm (2 53/64″ x 3/4″) |
| Max rope diameter | 6mm (1/4″) | 10mm (3/8″) | 12mm (7/16″) | 14mm (9/16″) | 14mm (9/16″) |
| SWL | 275kg (606lbs) | 400kg (881lbs) | 750kg (1650lbs) | 1000kg (2200lbs) | 1250kg (2750lbs) |
| Break load | 550kg (1210lbs) | 800kg (1763lbs) | 1500kg (3300lbs) | 2000kg (4400lbs) | 2500kg (5500lbs) |
| Max rolling load (ball bearing blocks) | 130kg (286lbs) | 270kg (595lbs) | 525kg (1157lbs) | 700kg (1543lbs) | 875kg (1929lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99543334
Size 0 / Plain
2
2
99544775
Size 3 / Plain
0
0
99545048
Size 3 / Ball Bearing
2
0
99545550
Size 5 / Plain
1
0
99546021
Size 5 / Ball Bearing
0
0
99546342
Size 6 / Plain
0
0
99546663
Size 6 / Ball Bearing
0
0
99546984
Size 7 / Plain
1
0
99547301
Size 7 / Ball Bearing
1
0
