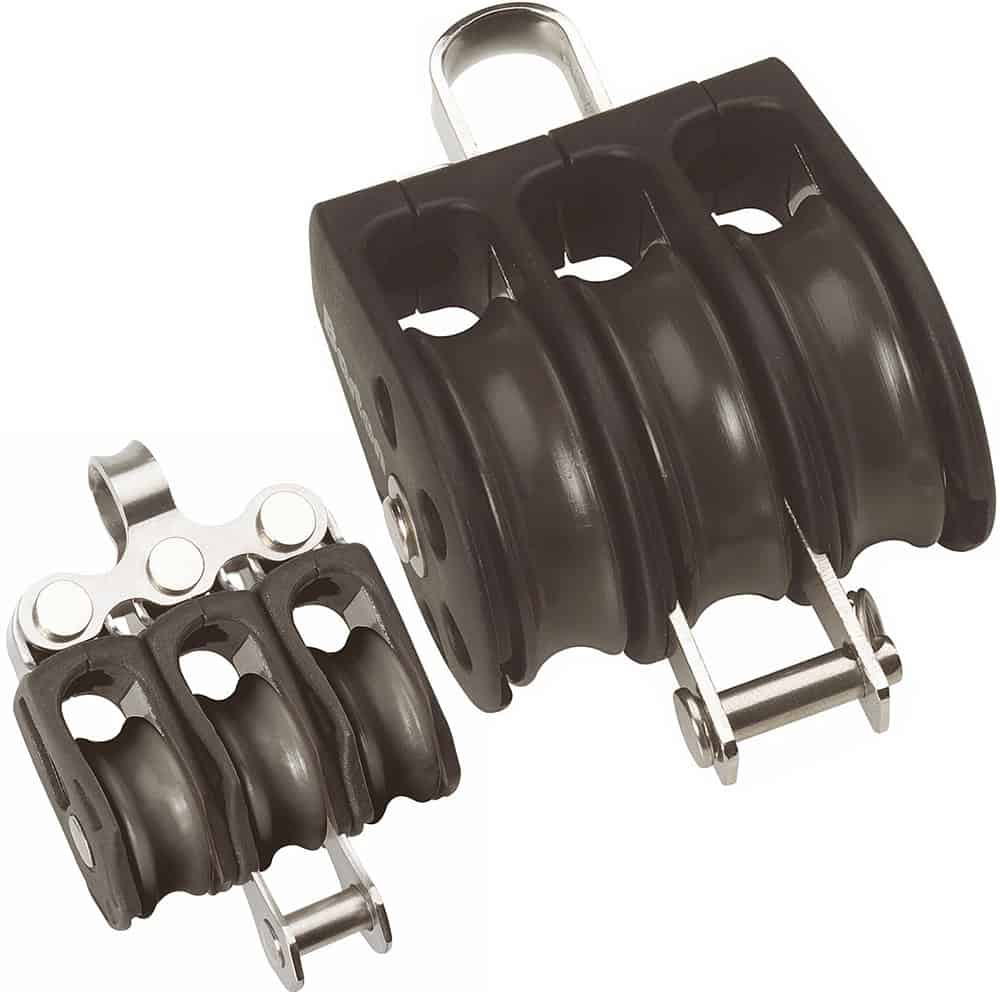

Barton Block Triple Fixed Eye with Becket
£21.95 - £49.95
Barton Block Triple Fixed Eye with Becket
| Size 0 | Size 1 | Size 2 | |
| Weight | 58 g | 94 g | 113 g |
| Dimensions | 63 × 43 × 21 mm | 70 × 56 × 32 mm | 85 × 55 × 38 mm |
| Sheave Size | 20mm x 8mm (25/32″ x 5/16″) | 30mm x 12mm (1 3/16″ x 15/32″) | 35mm x 11mm (1 3/8″ x 15/32″) |
| Max rope diameter | 6mm (1/4″) | 8mm (5/16″) | 8mm (5/16″) |
| SWL | 275kg (606lbs) | 355kg (782lbs) | 370kg (815lbs) |
| Break load | 550kg (1210lbs) | 710kg (1565lbs) | 740kg (1630lbs) |
| Max rolling load (ball bearing blocks) | 130kg (286lbs) | 245kg (540lbs) | 260kg (573lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99543297
Size 0 / Plain
1
0
99543471
Size 0 / Ball Bearing
1
0
99543709
Size 1 / Plain
1
0
99543914
Size 1 / Ball Bearing
0
0
99544126
Size 2 / Plain
1
2
99544409
Size 2 / Ball Bearing
0
0
99744397
Size 3 / Ball Bearing
2
0
