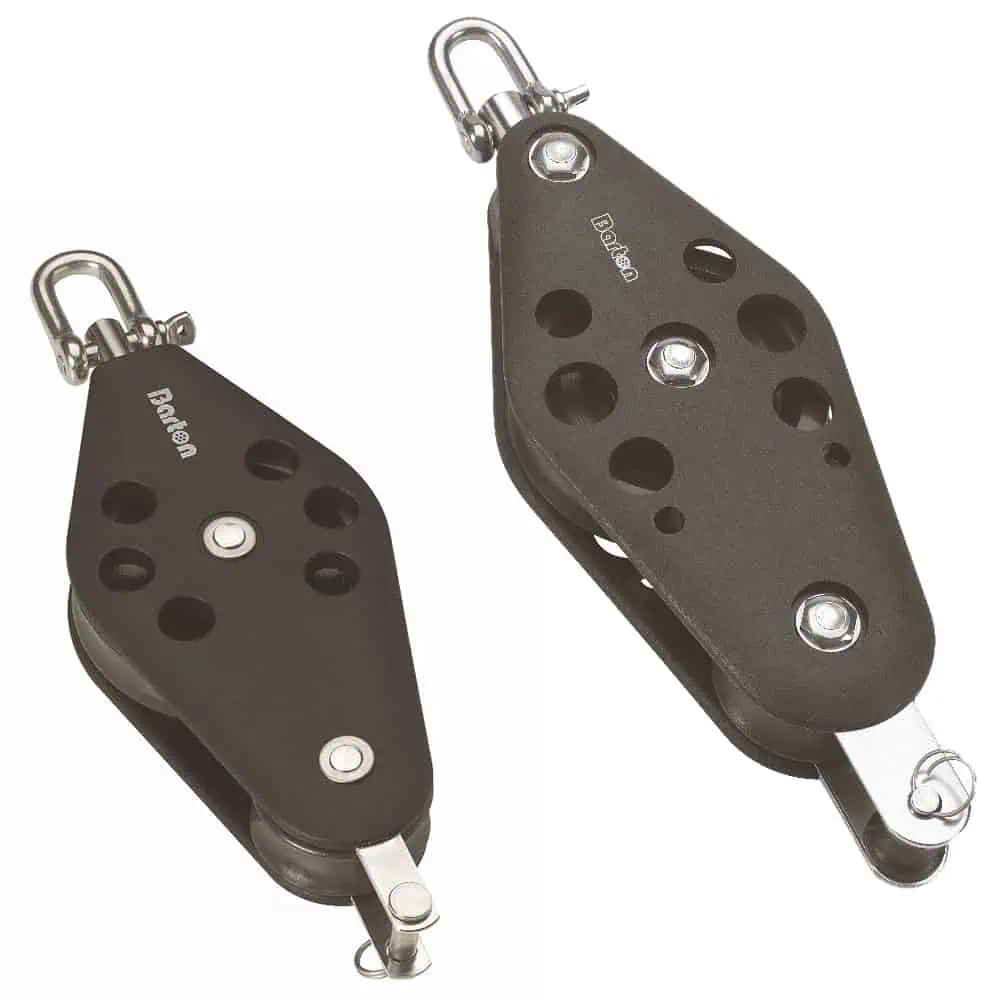

Barton Block Fiddle Swivel and Becket
£26.95 - £96.10
Barton Block Fiddle Swivel and Becket
| Size 2 | Size 3 | Size 5 | Size 6 | Size 7 | |
| Weight | 105 g | 154 g | 311 g | 404 g | 488 g |
| Dimensions | 145 × 48 × 25 mm | 175 × 60 × 28 mm | 205 × 67 × 37 mm | 235 × 77 × 36 mm | 250 × 77 × 42 mm |
| Sheave Size | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) | 64mm x 18mm (2 1/2″ x 45/64″) | 72mm x 20mm (2 53/64″ x 3/4″) |
| Max rope diameter | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) | 14mm (9/16″) | 14mm (9/16″) |
| SWL | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) | 1000kg (2200lbs) | 1250kg (2750lbs) |
| Break load | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) | 2000kg (4400lbs) | 2500kg (5500lbs) |
| Max rolling load (ball bearing blocks) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) | 700kg (1543lbs) | 875kg (1929lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99544188
Size 2 / Plain
2
0
99544461
Size 2 / Ball Bearing
0
0
99544751
Size 3 / Plain
1
1
99545024
Size 3 / Ball Bearing
0
0
99545413
Size 5 / Plain
0
0
99545901
Size 5 / Ball Bearing
0
0
99546250
Size 6 / Plain
0
0
99546571
Size 6 / Ball Bearing
0
0
99546892
Size 7 / Plain
0
0
99547219
Size 7 / Ball Bearing
1
0
