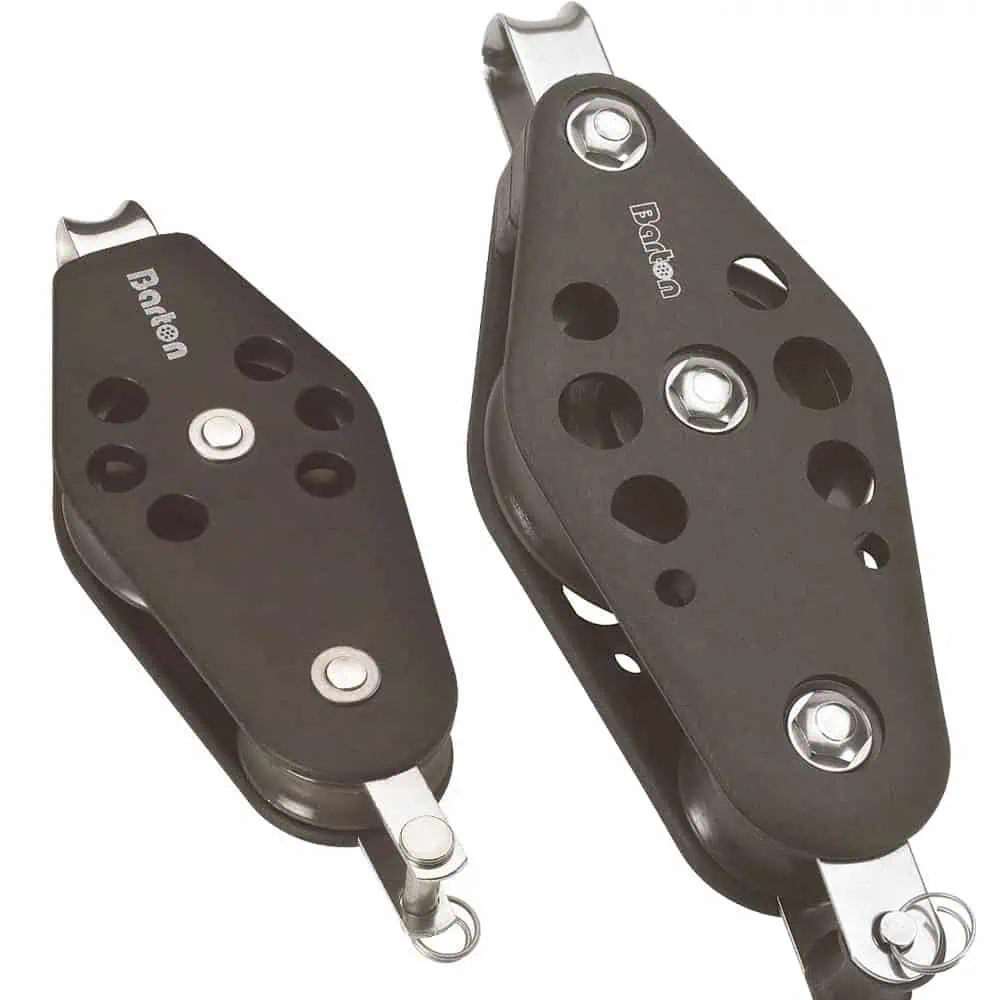

Barton Block Fiddle Fixed Eye and Becket
£19.95 - £54.95
Barton Block Fiddle Fixed Eye and Becket
| Size 2 | Size 3 | Size 5 | |
| Weight | 98 g | 138 g | 272 g |
| Dimensions | 131 × 48 × 25 mm | 158 × 60 × 28 mm | 188 × 67 × 37 mm |
| Size | 2 (35MM) | 3 (45MM) | 5 (54MM) |
| Block Type | Swivel + Becket | Fixed Eye + Becket | Fixed Eye + Becket |
| No. of Sheaves | Fiddle | Fiddle | Fiddle |
| Bearing Type | Plain | Plain | Plain |
| Sheave Size | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) |
| Max rope diameter | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) |
| Brand | Barton | Barton | Barton |
Part Number
Size / Sheave
Port Solent
Warehouse
99544164
Size 2 / Plain
0
0
99544447
Size 2 / Ball Bearing
0
0
99544737
Size 3 / Plain
0
0
99545000
Size 3 / Ball Bearing
0
0
99545376
Size 5 / Plain
0
0
99545864
Size 5 / Ball Bearing
0
0
