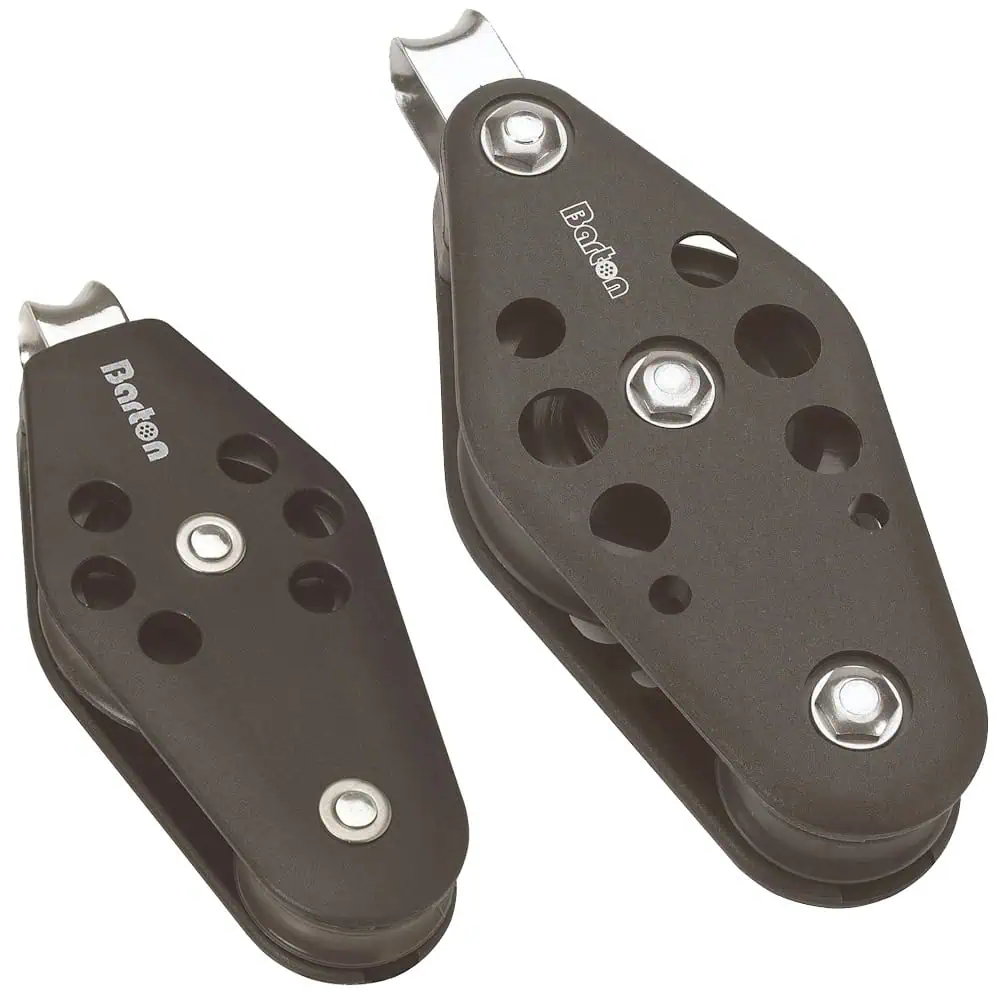

Barton Block Fiddle Fixed Eye
£17.95 - £49.95
Barton Block Fiddle Fixed Eye
| Size 2 | Size 3 | Size 5 | |
| Weight | 89 g | 129 g | 251 g |
| Dimensions | 112 × 48 × 25 mm | 134 × 60 × 28 mm | 167 × 67 × 37 mm |
| Sheave Size | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) |
| Max rope diameter | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99544157
Size 2 / Plain
1
1
99544430
Size 2 / Ball Bearing
0
0
99544720
Size 3 / Plain
1
0
99544997
Size 3 / Ball Bearing
0
0
99545369
Size 5 / Plain
1
0
99545857
Size 5 / Ball Bearing
0
0
