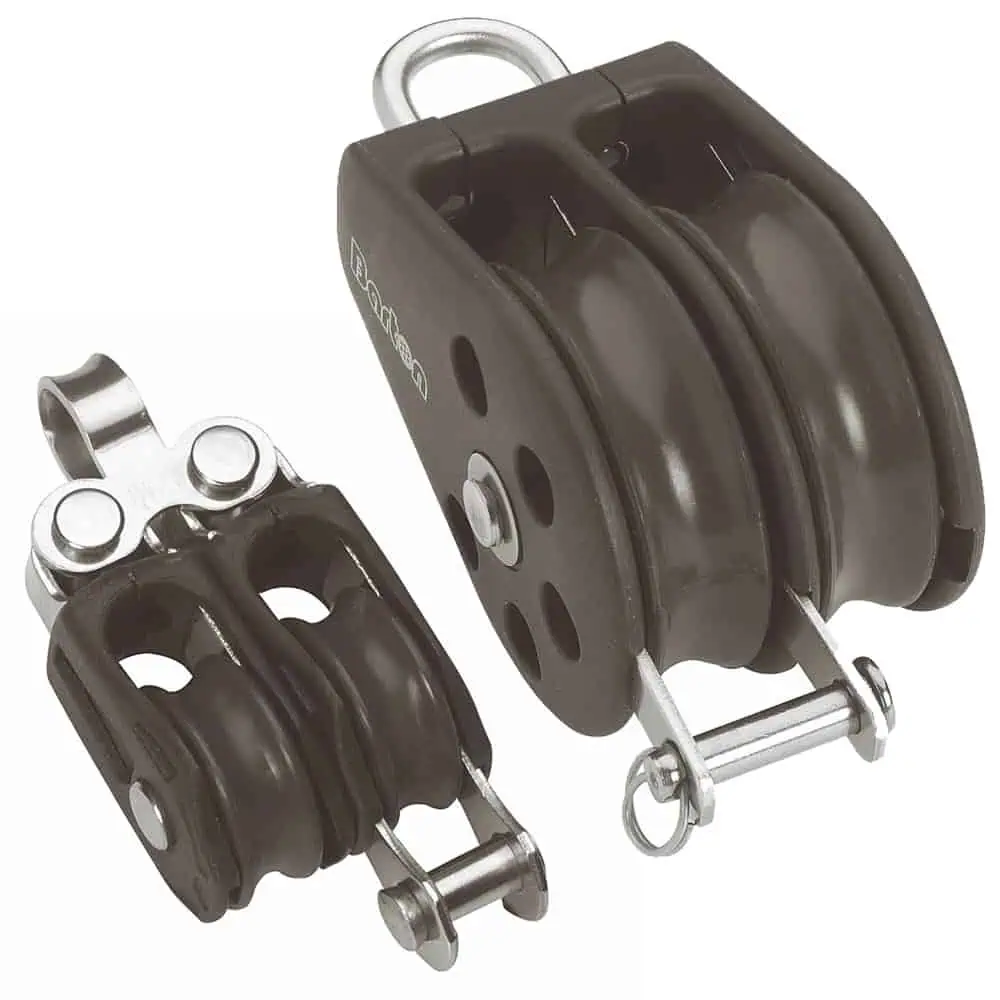

Barton Block Double Fixed Eye with Becket
£17.95 - £49.95
Barton Block Double Fixed Eye with Becket
Scroll to see more dimensions ?
| Size 0 | Size 1 | Size 2 | Size 3 | Size 5 | |
| Weight | 40 g | 74 g | 85 g | 121 g | 274 g |
| Dimensions | 63 × 30 × 21 mm | 78 × 40 × 32 mm | 81 × 39 × 38 mm | 95 × 46 × 47 mm | 131 × 59 × 58 mm |
| Sheave Size | 20mm x 8mm (25/32″ x 5/16″) | 30mm x 12mm (1 3/16″ x 15/32″) | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) |
| Max rope diameter | 6mm (1/4″) | 8mm (5/16″) | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 275kg (606lbs) | 355kg (782lbs) | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 550kg (1210lbs) | 710kg (1565lbs) | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 130kg (286lbs) | 245kg (540lbs) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99543259
Size 0 / Plain
1
1
99543655
Size 1 / Plain
2
0
99543860
Size 1 / Ball Bearing
0
0
99544058
Size 2 / Plain
0
0
99544331
Size 2 / Ball Bearing
0
0
99544669
Size 3 / Plain
1
0
99544935
Size 3 / Ball Bearing
1
0
99545284
Size 5 / Plain
1
0
99545765
Size 5 / Ball Bearing
0
0
