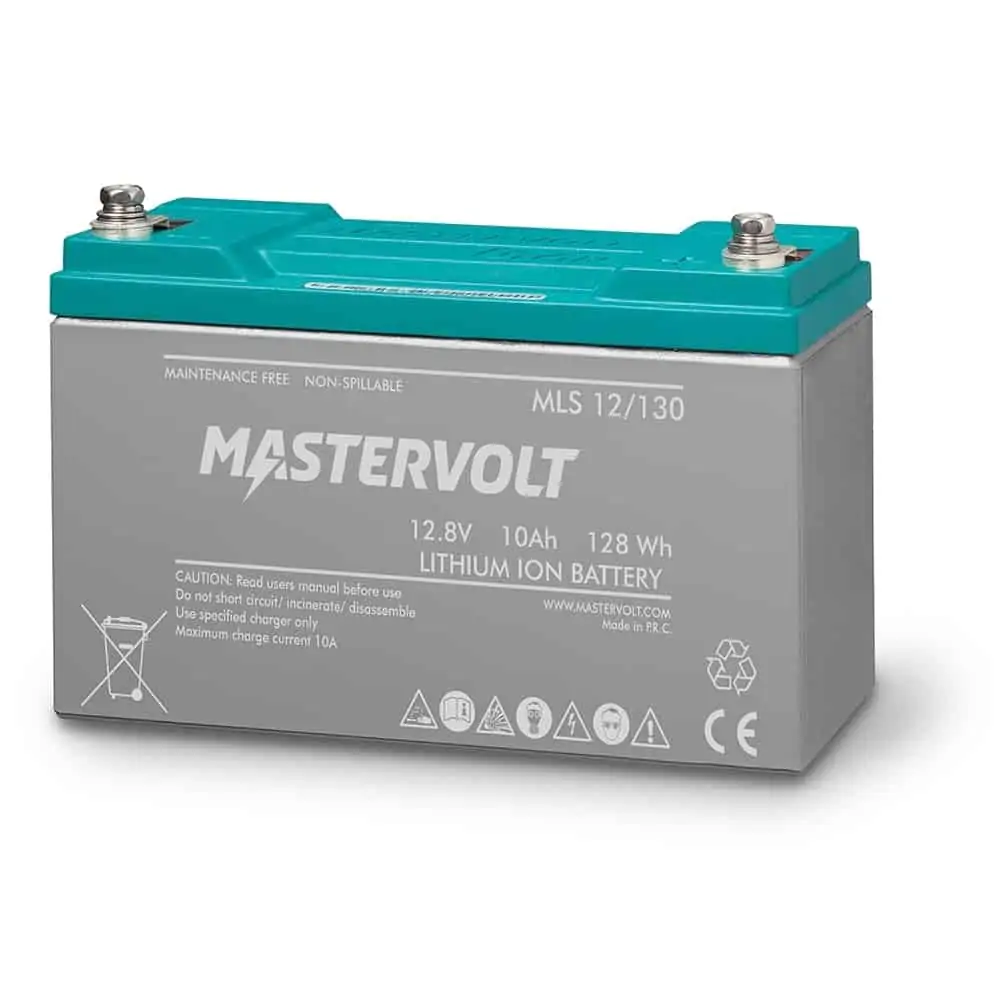

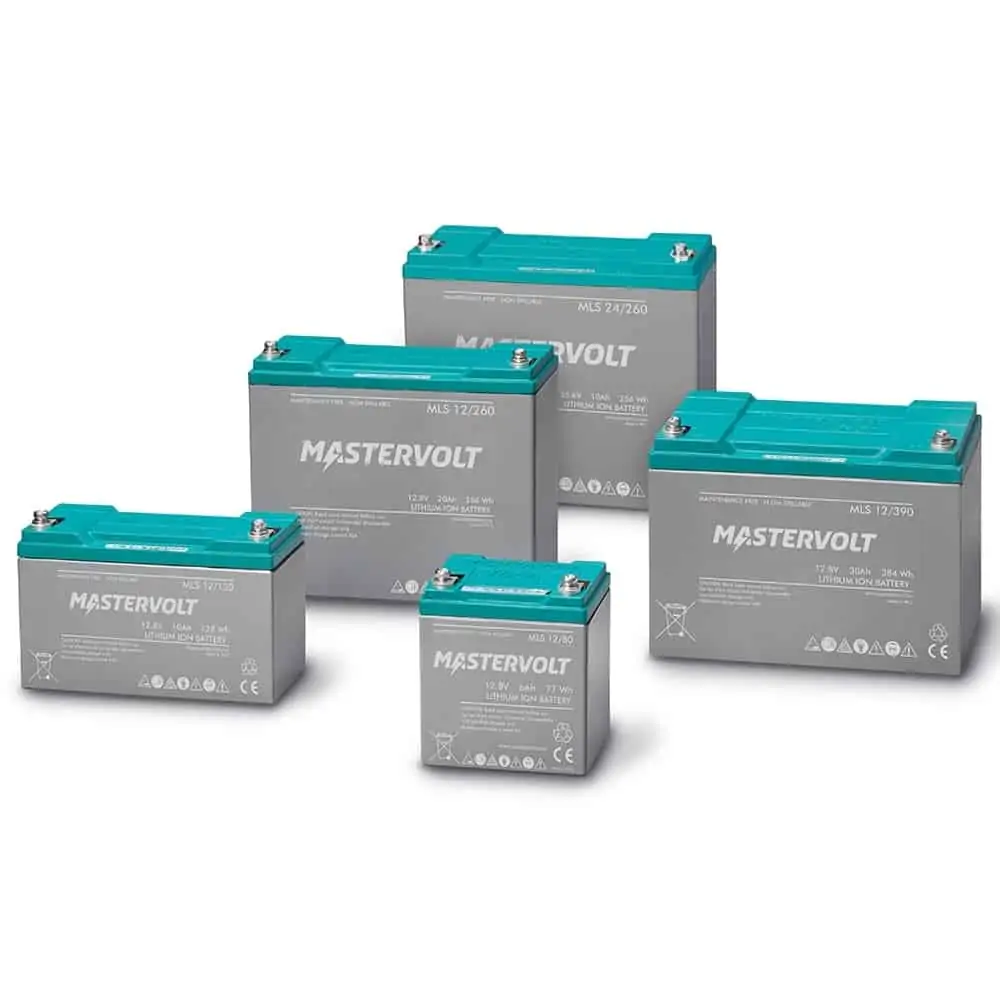

Mastervolt MLS Lithium Battery

£ 242.69 - £ 584.96

Clear

The MLS series is designed to be extremely easy to install without any additional components. All the models comprise of a tough waterproof plastic case. This makes it a straight-forward replacement for most existing lead-acid batteries.The MLS series comes with an integrated safety switch, this saves installation and commissioning time. For higher capacity, multiple MLS batteries can easily be connected in parallel.

The MLS batteries are suited for many different applications where capacity up to 90 Ah is needed. Its compactness and low weight plus the fact that it is mountable in multiple orientations, make it ideal for portable applications such as mobile communications. The MLS is also often used for (UPS) backup power. Applications range from small boats and vehicles to security systems and industrial applications.

Product Features:

  • Entry into Lithium Ion technology.
  • For smaller capacity applications up to 90 Ah.
  • Drop-in replacement for lead-acid batteries.
  • Saves up to 70 % in space and weight.
  • Three times the lifespan of traditional batteries.
  • High cycle efficiency.
  • Fast charging up to one hour.
  • High discharge rate up to 1C.
  • Integrated Battery Management System (BMS).
  • Self-regulating due to its integrated automatic safety disconnect.
  • Suitable for unlimited parallel operation.
  • Waterproof electronics cabinet.
  • Extremely safe LiFePO4 chemistry.
  • Tested and certified according to UN38.3

Product Specifications:

  1. Nominal battery voltage: 12 V
  2. No-load voltage, fully charged: 12,8 V
  3. Nominal battery capacity: 10 Ah
  4. Nominal battery energy capacity: 128 Wh
  5. Cycle life: ~2000 at 80 % DoD
  6. Max. charge current: 10 A (1 C)
  7. Continuous discharge current: 10 A (1 C)
  8. Max. short discharge current: For 30 sec 25 A (2,5 C)
  9. Peak discharge current: For 2 sec 48 A (4,8 C)
  10. Battery terminals: M5
  11. Mounting position: Upright or either long side
  12. Max. outer dimensions (incl. terminals/grip handles), lxwxh: 151 x 65 x 102 mm (5.9 x 2.6 x 4.0 inch)
  13. Weight: 1.5 kg (3.3 lb)
  14. Battery Chemistry: Lithium Iron Phosphate
Part Number
Size
Port Solent
Warehouse
99599003
10A
0
0
99599027
20A
0
0
99599034
30A
0
0
