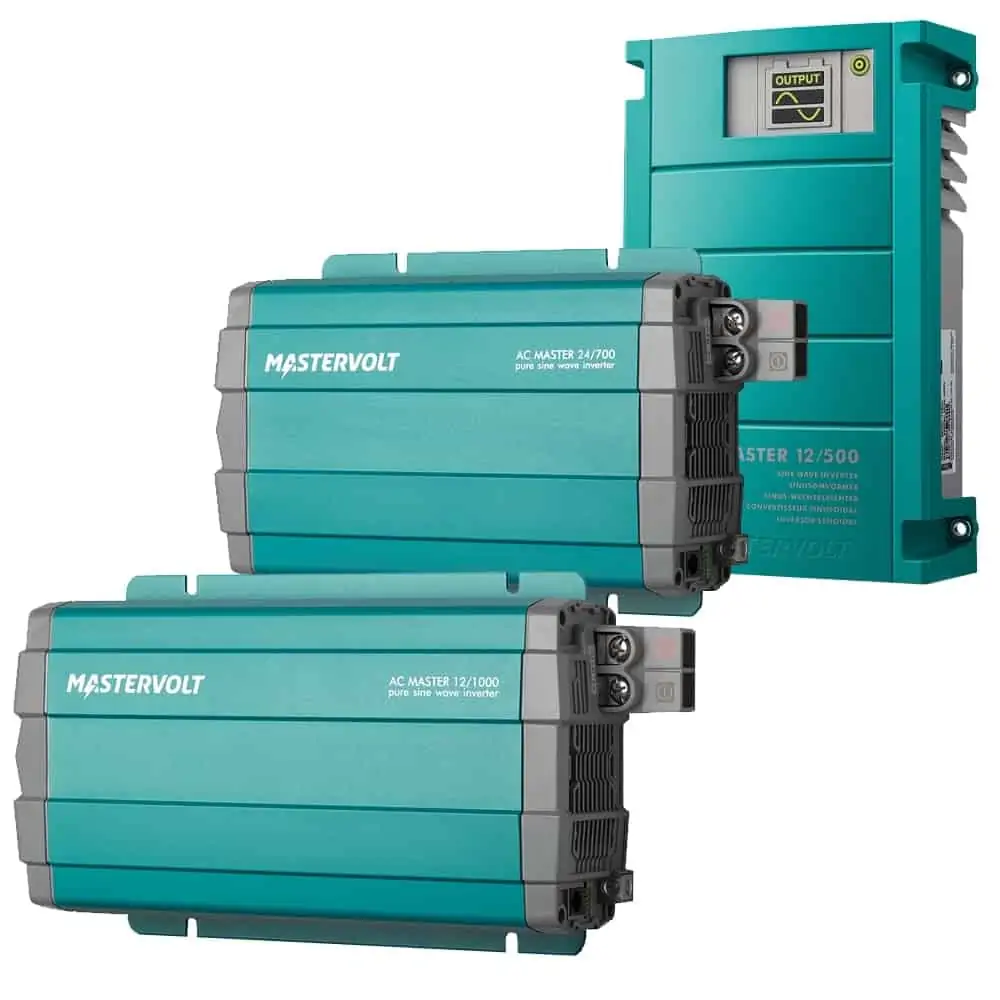

Mastervolt AC Master Inverter

£ 154.95 - £ 749.95

Clear

Mastervolt AC Master sine wave inverters have proven themselves under the most extreme conditions for over 25 years. These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features (IEC models)
Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power saving system for extended runtime.

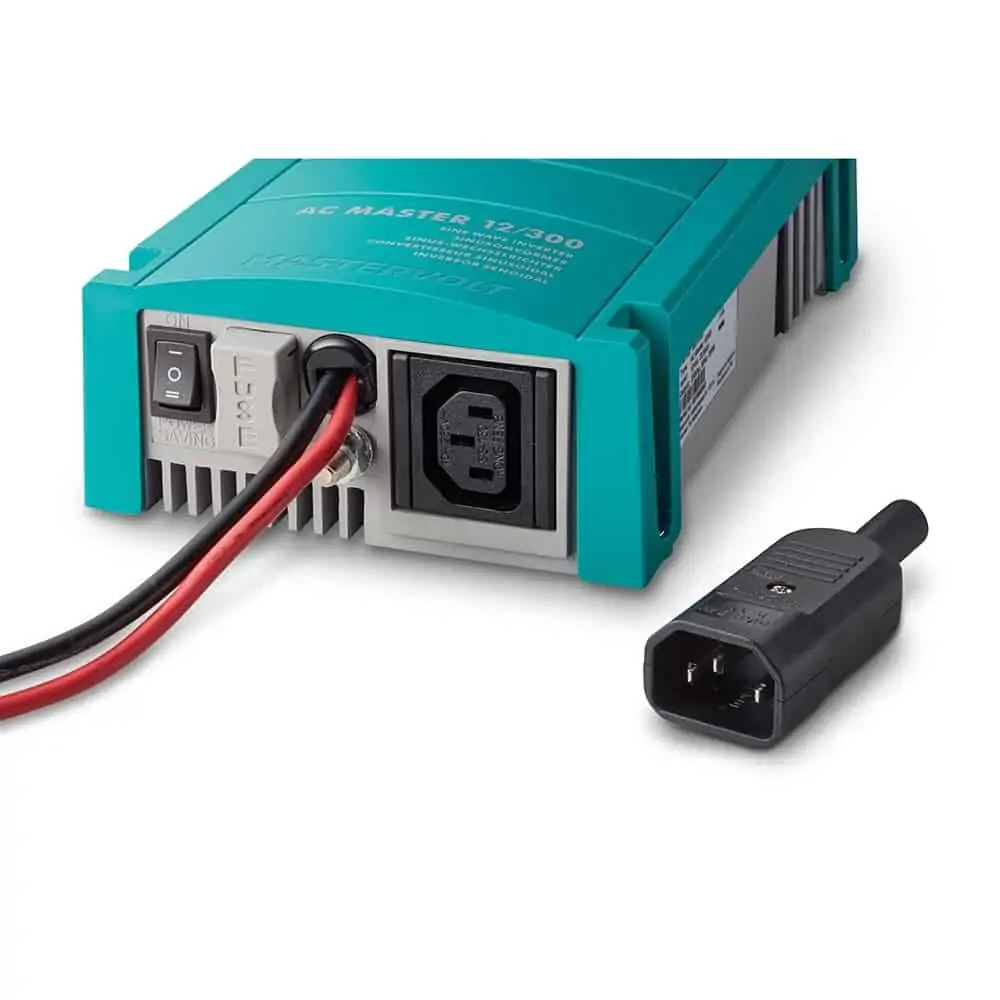

Easy to install: convenient IEC socket with IEC plug included.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.

Features (UK Plug Models)
Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power saving system for extended runtime.
Compact and lightweight design, saving valuable installation time.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
Variable speed fan for quiet operation at low power.
Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
Convenient UK plug connection

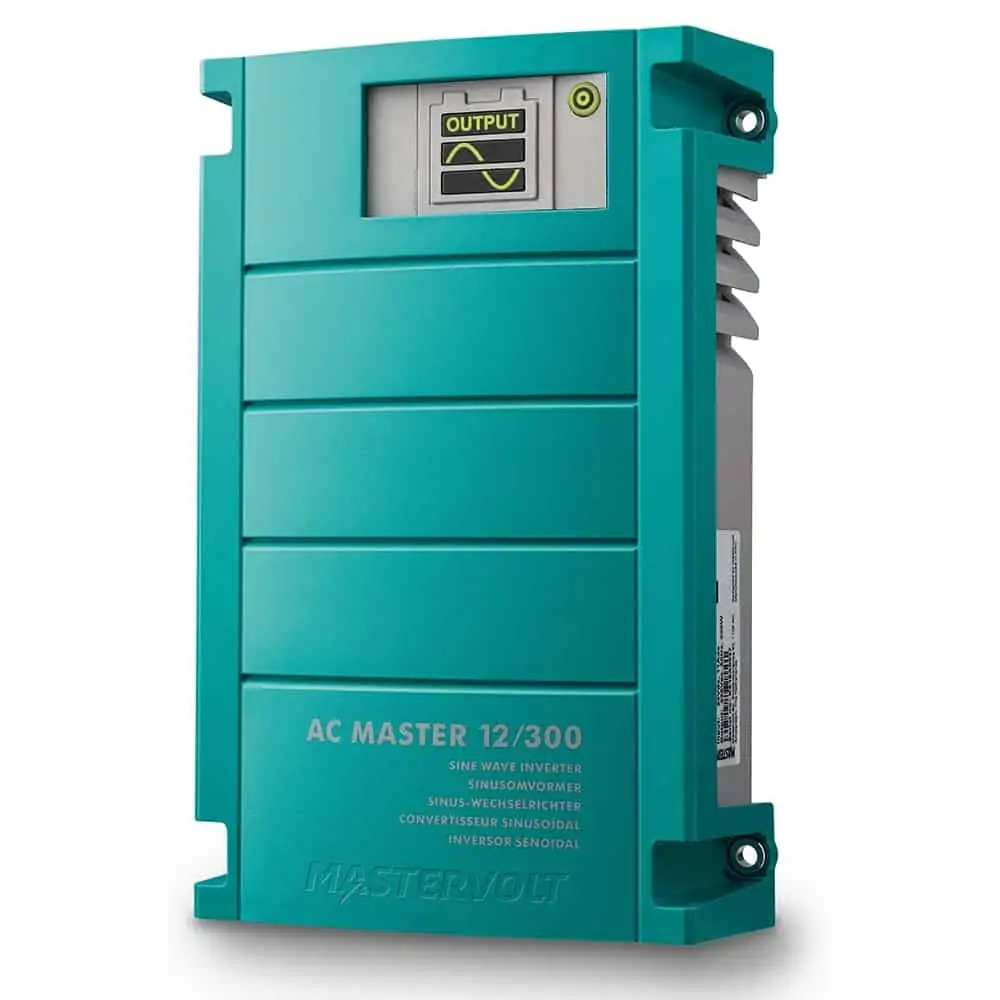

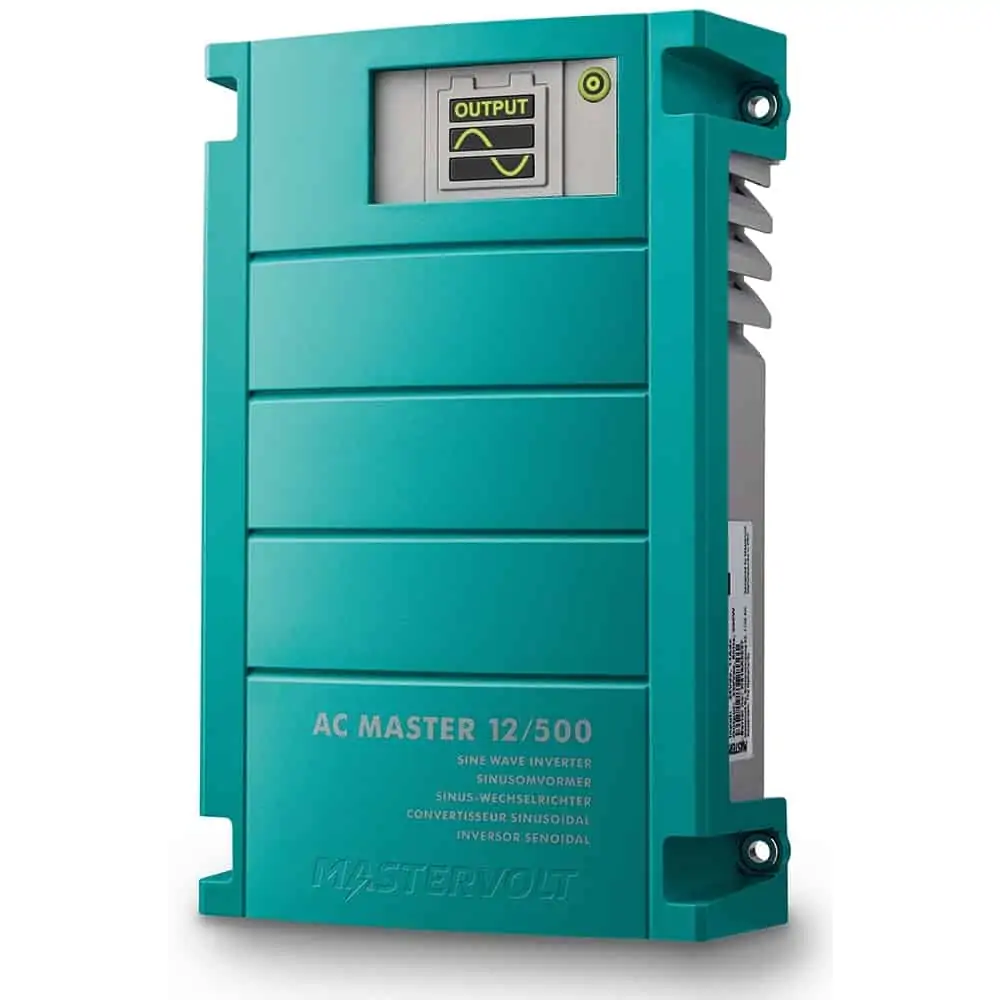

General specifications 12v 300W IEC 12v 500W IEC
Output voltage 230 V – 50 Hz (± 0.1%) 230 V – 50 Hz (± 0.1%)
Output waveform true sine true sine
Nominal battery voltage 12 V 12 V
Recommended battery capacity ≥ 60 Ah ≥ 100 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 300 W 500 W
Continuous power at 40 °C / 104 °F, cos phi 1 250 W 400 W
Peak load (5 s) 600 W 800 W
AC connection universal universal
Efficiency 90% 90%
Display/read-out LED display LED display
Dimensions, hxwxd 210 x 130 x 60 mm 210 x 130 x 60 mm
Weight 1.16 kg 1.22 kg
Approvals CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31
Technical specifications 12v 300W IEC 12v 500W IEC
Technology high frequency, input & output fully isolated high frequency, input & output fully isolated
Low battery voltage, switches off at 10 V, ± 0.5 V 10 V, ± 0.5 V
Low battery voltage, switches on at 11 V, ± 0.5 V 11 V, ± 0.5 V
High battery voltage, switches off at 16 V, ± 0.5 V 16 V, ± 0.5 V
High battery voltage, switches on at 14.5 V, ± 0.5 V 14.5 V, ± 0.5 V
Max. ripple on DC (battery) 10 % RMS 10 % RMS
Input current (nominal load) 22.5 A 37.5 A
No-load power consumption (ON mode) 0.58 A – 7 W 0.58 A – 7 W
No-load power consumption (energy saving mode) 0.33 A – 4 W 0.33 A – 4 W
Minimal DC fuse (slow blow) 2x 40 A 2x 40 A
Minimal cable size 1.5 mtr DC cable delivered as standard 1.5 mtr DC cable delivered as standard
Harmonic distortion typical < 6 % < 6 %
Cos phi all power factors allowed all power factors allowed
Temperature range (ambient temp.) -20 °C to 60 °C, derating power > 40 °C -20 °C to 60 °C, derating power > 40 °C
Cooling natural/forced natural/forced
Switch off at (auto recover after cooling down) 50 °C 50 °C
Protection degree IP23, vertical wall mounting IP23, vertical wall mounting
Protections over temperature, over load, short circuit, high/low battery voltage over temperature, over load, short circuit, high/low battery voltage
MasterBus compatible no no

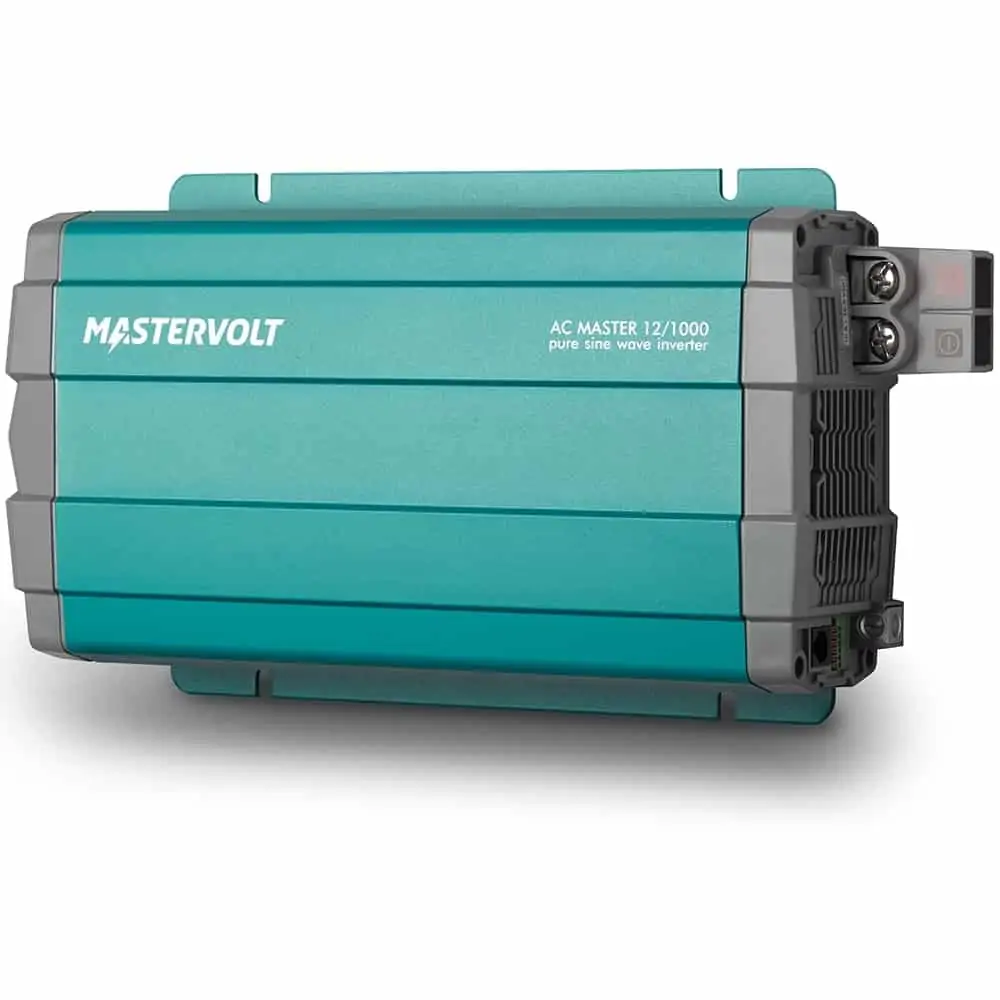

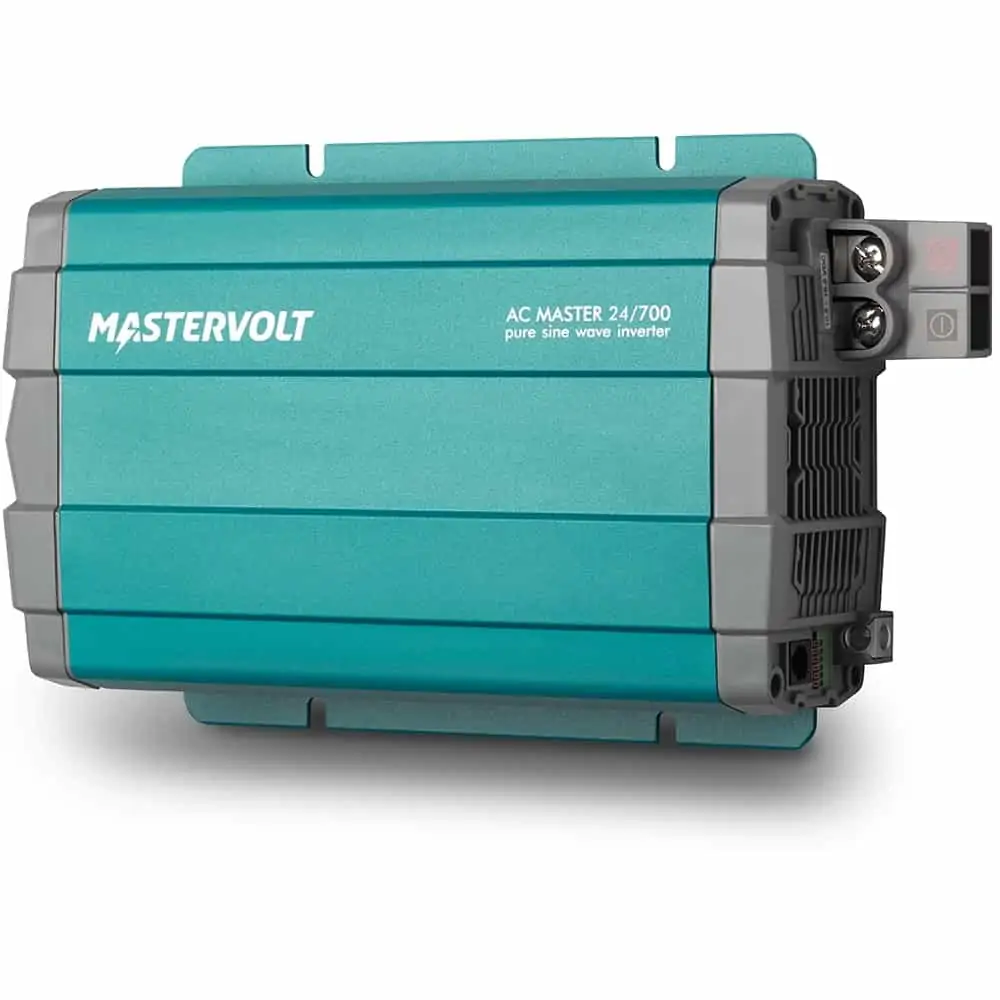

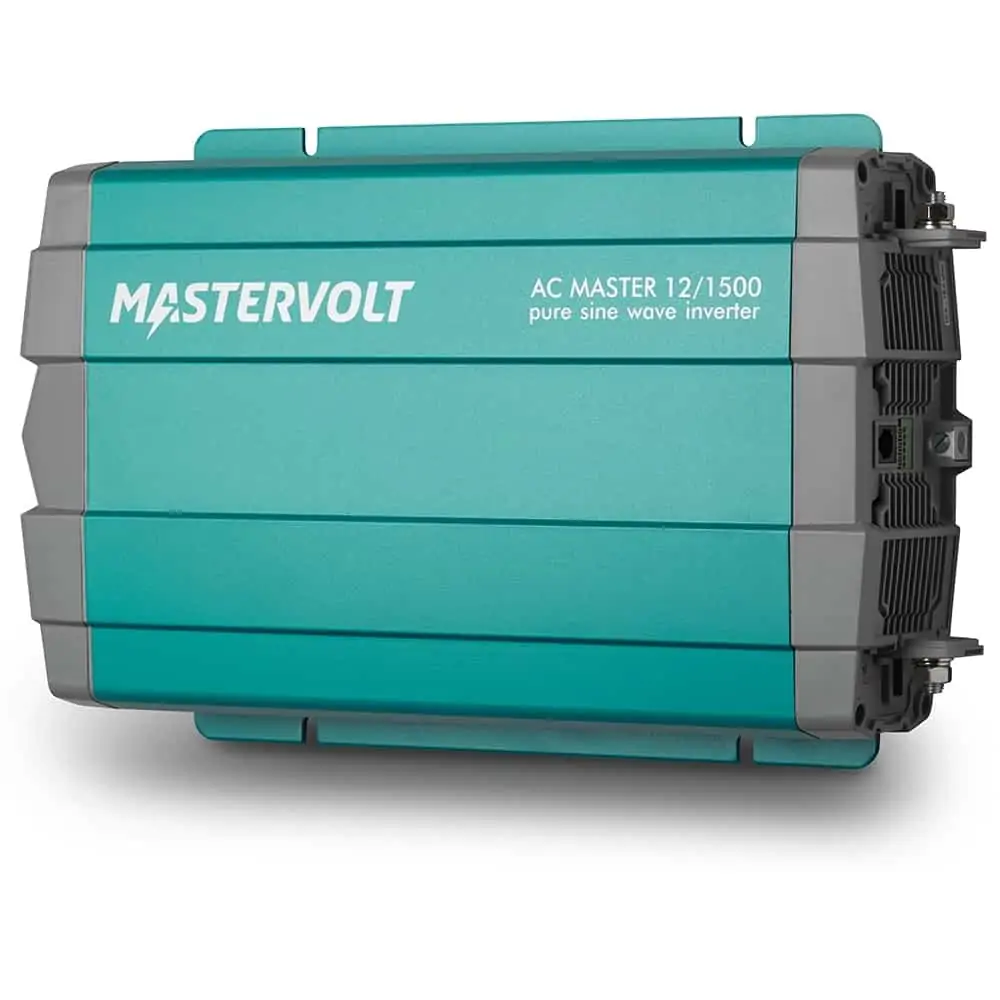

General specifications 12v 1000W 12v 1500W 24v 700W 24v 1000W
Output voltage 200/220/230/240 V – 50/60 Hz (selectable) 200/220/230/240 V – 50/60 Hz (selectable) 200/220/230/240 V – 50/60 Hz (selectable) 200/220/230/240 V – 50/60 Hz (selectable)
Output waveform true sine true sine true sine true sine
Nominal battery voltage 12 V 12 V 24 V 24 V
Recommended battery capacity ≥ 130 Ah ≥ 160 Ah ≥ 50 Ah ≥ 65 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 1000 W 1500 W 700 W 1000 W
Continuous power at 40 °C / 104 °F, cos phi 1 1000 W 1500 W 700 W 1000 W
Peak load (1 min.) < 1150 W < 1730 W < 810 W < 1150 W
Peak load (1 s) < 1750 W < 2650 W < 1230 W < 1750 W
AC connection UK plug  UK plug  UK plug  UK plug
Efficiency 92% 93% 93% 94%
Display/read-out LED indication: battery voltage, load level, status LED indication: battery voltage, load level, status LED indication: battery voltage, load level, status LED indication: battery voltage, load level, status
Alarms potential free alarm contact potential free alarm contact potential free alarm contact potential free alarm contact
Dimensions, hxwxd 200 x 372 x 83 mm 248 x 421 x 83 mm 200 x 330 x 83 mm 200 x 372 x 83 mm
Weight 3.3 kg 4.2 kg 2.7 kg 3.3 kg
Approvals CE, E-mark, RCM CE, E-mark, RCM CE, E-mark, RCM CE, E-mark, RCM
Technical specifications 12v 1000W 12v 1500W 24v 700W 24v 1000W
Technology high frequency, input & output fully isolated high frequency, input & output fully isolated high frequency, input & output fully isolated high frequency, input & output fully isolated
Low battery voltage, switches off at 10.5 V 10.5 V 21 V 21 V
Low battery voltage, switches on at 12.5 V 12.5 V 25 V 25 V
High battery voltage, switches off at 16.5 V 16.5 V 33 V 33 V
High battery voltage, switches on at 14.5 V 14.5 V 29 V 29 V
Input current (nominal load) 100 A 150 A 35 A 50 A
No-load power consumption (ON mode) < 1.5 A < 1.8 A < 0.8 A < 0.8 A
No-load power consumption (energy saving mode) < 0.1 A < 0.1 A < 0.06 A < 0.05 A
Minimal DC fuse (slow blow) 125 A 175 A 50 A 63 A
Minimal cable size 35 mm² 50 mm² 16 mm² 16 mm²
Harmonic distortion typical < 5 % < 3 % < 5 % < 5 %
Cos phi all power factors allowed all power factors allowed all power factors allowed all power factors allowed
Temperature range (ambient temp.) -20 °C to 60 °C, derating power > 40 °C -20 °C to 60 °C, derating power > 40 °C -20 °C to 60 °C, derating power > 40 °C -20 °C to 60 °C, derating power > 40 °C
Cooling temperature and load controlled fan temperature and load controlled fan temperature and load controlled fan temperature and load controlled fan
Protection degree IP21, horizontal wall mounting IP21, horizontal wall mounting IP21, horizontal wall mounting IP21, horizontal wall mounting
Protections over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible no no no no
Part Number
Size
Port Solent
Warehouse
99598860
12V 300W - IEC Plug
1
0
99598884
12V 500W - IEC Plug
1
0
99598891
12V 1000W - UK Plug
1
0
99598907
12V 1500W - UK Plug
1
0
99598914
24V 700W - UK Plug
1
0
99598921
24V 1000W - UK Plug
1
0
