Mastervolt DC Master

Click on an image to display a larger detailed image.

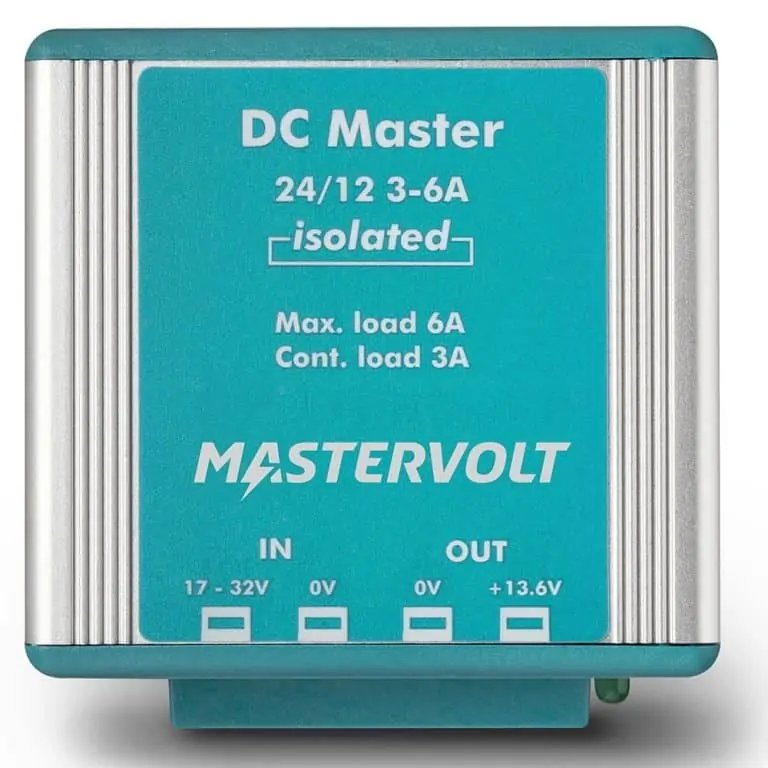

Mastervolt DC Master

1 IN STOCK

RRP £81.94

£81.00

Size


Quantity

1 in stock NEXT DAY DELIVERY

CLICK & COLLECT AVAILABLE


The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.

The isolated DC Master models provide galvanic isolation between input and output circuits.

The 12V to 12V model stabilises an input from 10V - 15.5V to give a steady 13.6V output.

Features:
Extra touch-proof.
Interference suppression for sensitive equipment.
Available with negative or positive grounding.

Intelligent DC-DC converters
A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package
All DC Master converters are delivered with mounting bracket, screws and fasteners.

General specifications 24V - 12V 3A 24V - 12V 6A 12V - 12V 3A 12V - 12V 6A
Nominal output voltage 13.6 V 13.6 V 13.6 V 13.6 V
Max. output power 82 W 136 W 54 W 108 W
Nominal output power 41 W 82 W 41 W 82 W
Max. output current (for 2 min. intervals) 6A 10A 4A 8A
Continuous output current 3A 6A 3A 6A
Nominal input voltage 24 V 24 V 12 V 12 V
Input voltage range (max.) 20-32 V DC (35 V) 20-32 V DC (35 V) 10-15.5 V DC (16 V) 10-15.5 V DC (16 V)
Galvanic isolation yes yes yes yes
Stabilised yes yes yes yes
Dimensions, hxwxd 89 x 87 x 50 mm 127 x 87 x 50 mm 89 x 87 x 50 mm 127 x 87 x 50 mm
Weight 0.29 kg 0.505 kg 0.28 kg 0.44 kg
Approvals CE, E-mark CE, E-mark CE, E-mark CE, E-mark
DC consumption < 15 mA < 15 mA < 15 mA < 15 mA
Connections fast-on fast-on fast-on fast-on
Temperature range (ambient temp.) -25 °C to 80 °C, derating > 30 °C -25 °C to 80 °C, derating > 30 °C -25 °C to 80 °C, derating > 30 °C -25 °C to 80 °C, derating > 30 °C
Cooling natural cooling natural cooling natural cooling natural cooling
Protection degree IP53 IP53 IP53 IP53
Size/ColourPart NumberStock AvailabilityPrice
24V - 12V 3A99598846 1 at 17/01 15:54 £81.00 Add to Basket
24V - 12V 6A99598853 1 at 17/01 15:54 £118.95 Add to Basket
12V - 12V 3A99598822 2 at 17/01 15:54 £109.95 Add to Basket
12V - 12V 6A99598839 1 at 17/01 15:54 £199.95 Add to Basket
