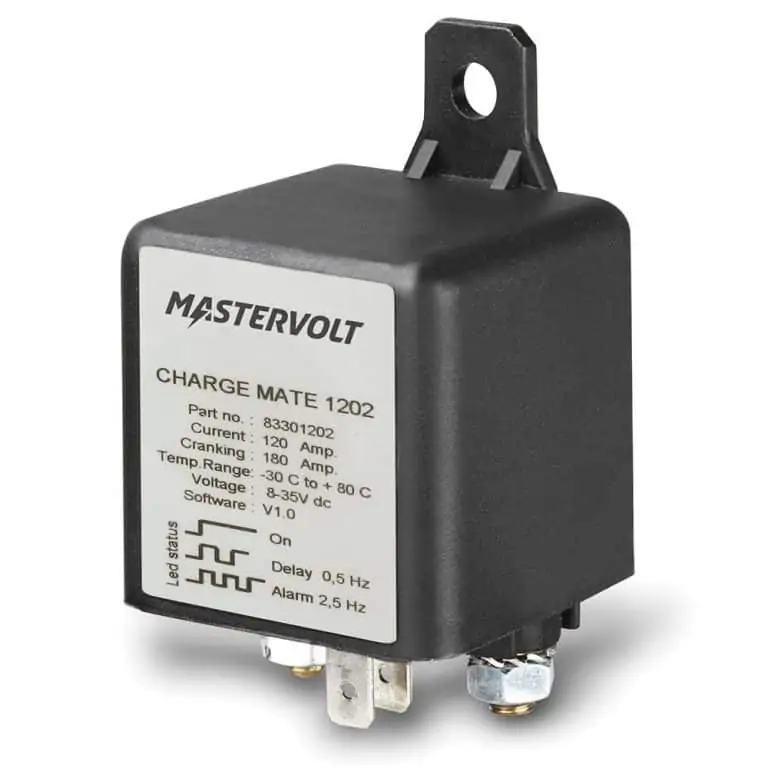

Mastervolt Charge Mate

£ 78.16 £ 64.95

Out of Stock
This item is currently unavailable to purchase.

Want to be notified when this product is back in stock?

Mastervolt Charge Mate – A secondary battery is becoming increasingly common. As a second battery can prevent the main battery from depleting and being unable to start, this seems like a safe and reliable solution. The second battery, however, also has to be charged regularly. The Charge Mate series connects both batteries during charging and keeps them isolated when discharging. The Charge Mate 1202 is especially practical for small systems.

Specifications
Battery voltage 12/24 V
Max. current 120 A
Dimensions, hxwxd 76 x 46 x 46 mm
Weight 0.125 kg
Power consumption switch open: < 1 mA at 12/24 V DC
Inrush current (250 ms) 2000 A
Switch on voltage 13-15 V (12 V) / 26-30 V (24 V)
Switch on delay 5 sec
Switch off voltage < 12.75 V (12 V) / < 25.5 V (24 V)
Switch off delay no
Relay electro-mechanical
Temperature range (ambient temp.) -40 °C to 65 °C
Protection degree IP21
