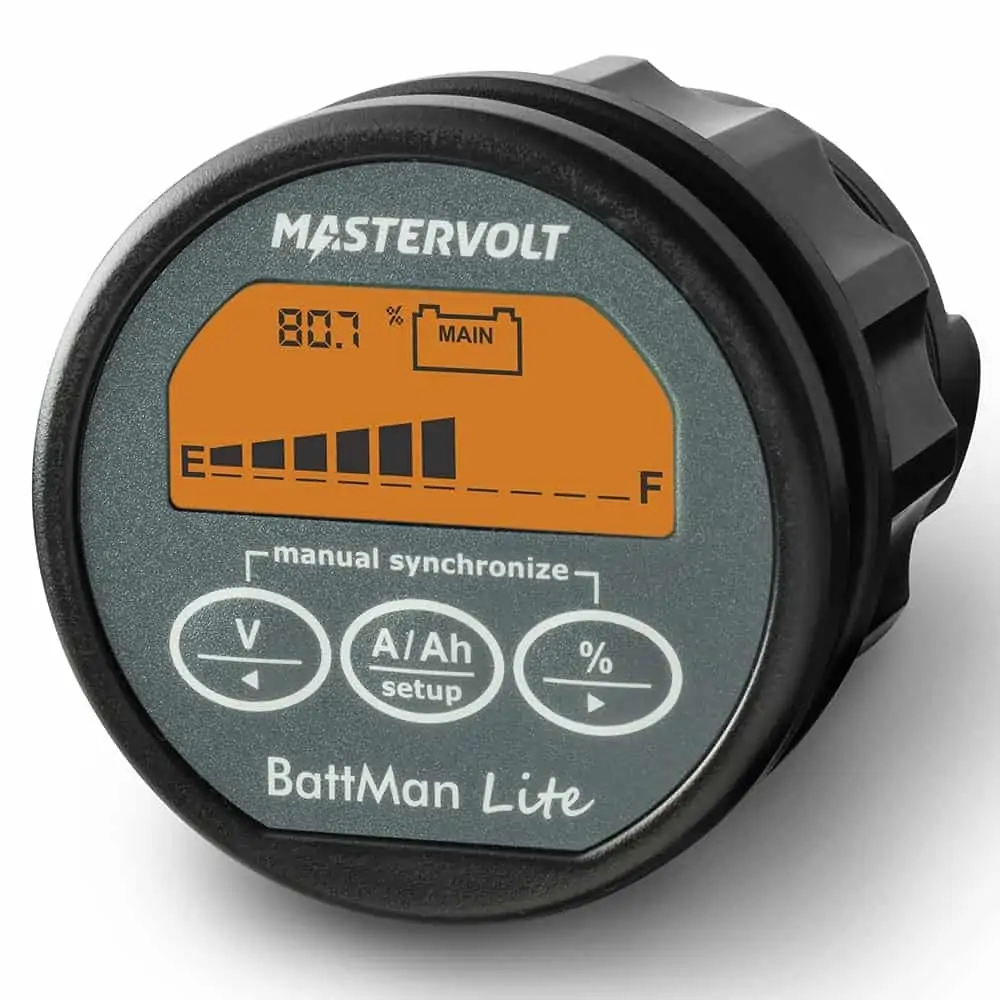

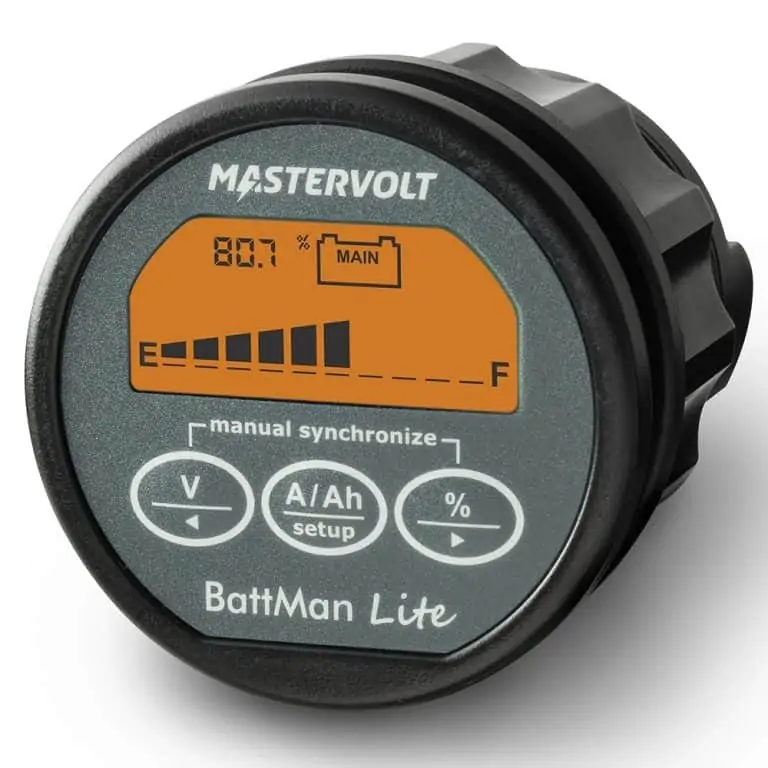

Mastervolt Battman Lite Battery Monitor
Mastervolt Battman Lite Battery Monitor, 12/24 V DC with large, splash proof display (IP65) and power bar.
An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty.
Specifications |
|
Number of battery outlets |
2; service (fully), starter (voltage) |
Display/read-out |
voltage, current, amp-hours, battery capacity in % |
Languages on display |
universal |
Built-in depth |
72.5 mm |
Dimensions |
Ø 64 mm, depth 79 mm |
Dimensions shunt, hxwxd |
87 x 45 x 35 mm |
Weight |
0.15 kg |
Max. Ah capacity |
9999 Ah |
Supply voltage |
9-35 V |
Voltage range |
0-35 V |
Current consumption (backlight off) |
8 mA/12 V, 6 mA/24 V |
Current consumption (backlight on) |
30 mA/12 V, 18 mA/24 V |
Voltage resolution |
0.1 V |
Voltage accuracy |
± 0.3% |
Shunt specification |
500 A/50 mV (service set) |
Current measurement range |
0-500 A |
Current accurancy |
± 0,4 % |
Battery alarm contact |
yes, potential free |
Remaining time indication |
no |
Historical data |
no |
MasterBus compatible |
no |
Connection cable (6-wire) necessary |
yes |
Modular cable necessary |
no |
Size / Colour | Part Number | Stock Availability | Price | |
| 99598938 | 0 at 18/01 09:49 | £149.95 |
Add to Basket |
