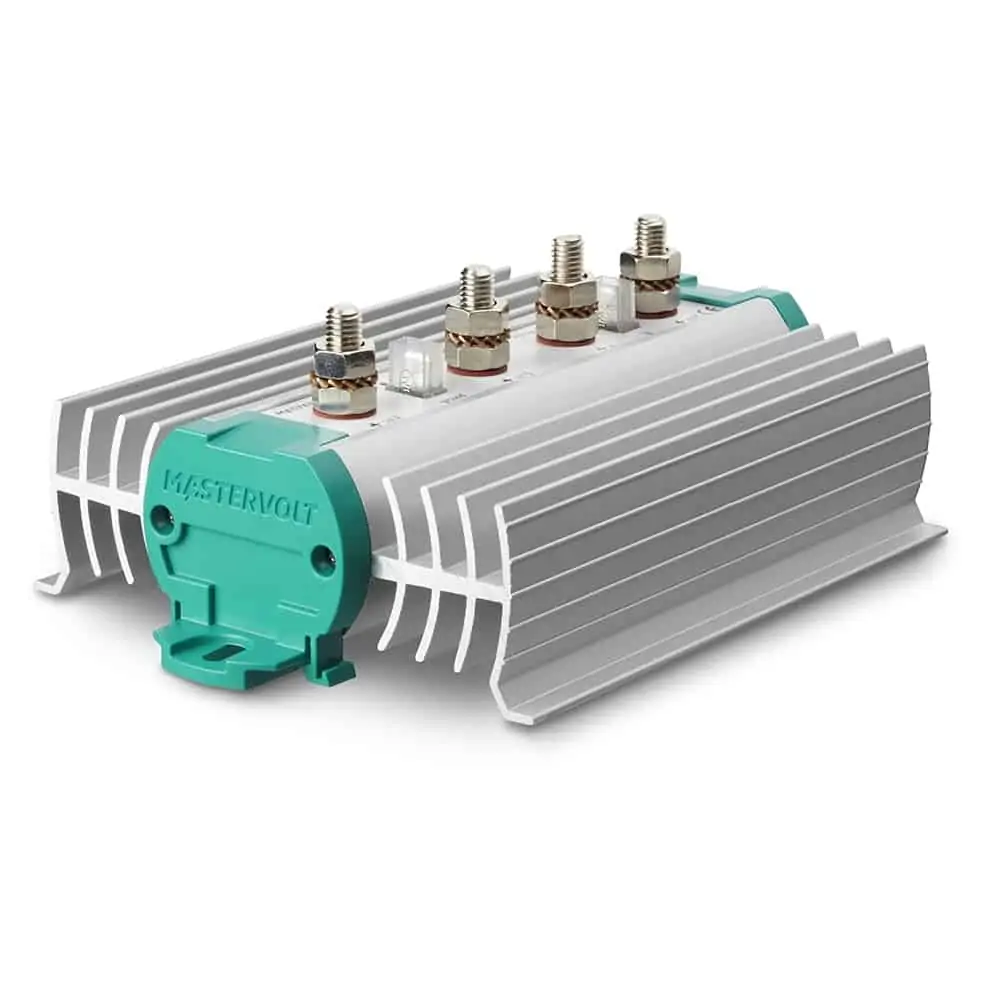

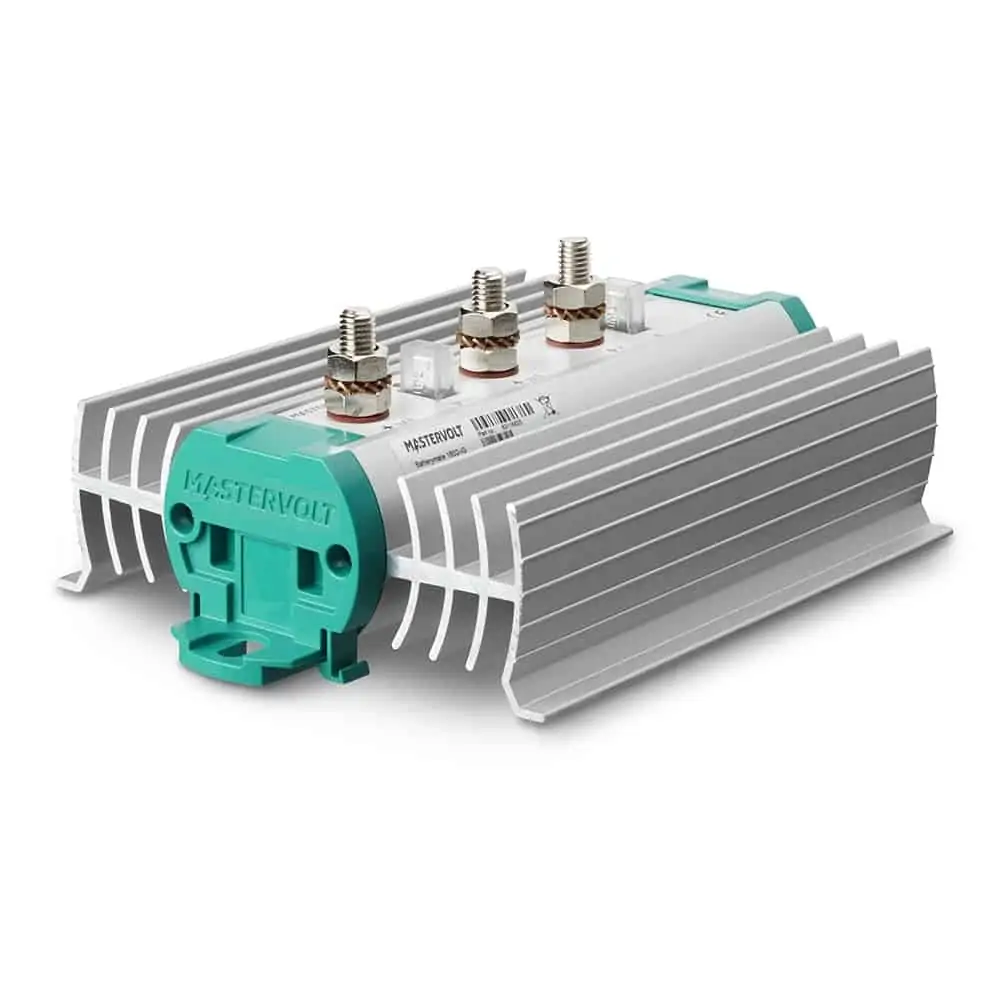

Mastervolt Battery Mate

£ 209.95 - £ 239.95

Clear

Mastervolt Battery Mate, Battery Isolator

While BI battery isolators are conventional diode splitters, the Battery Mate’s technology is electronic and includes mosfets (transistors). Its components compensate for the voltage drop and ensure that charging continues at the right voltage level, even with several battery banks.

The Battery Mate is compatible with any type of alternator/battery charger, in both existing and new systems. As the voltage loss between the alternator and battery is negligible, the Battery Mate performs far better than conventional battery isolators. This ensures fast and complete charging of your batteries without having to make additional adjustments to the alternator.

Charging two or three batteries at high capacity
The Battery Mate is most suitable for charging multiple batteries, possibly with various brands of alternators, even if their charge voltage cannot be adjusted. It can charge two or three batteries with a very high yield and without voltage loss.

Models 1602/1603 are suitable for alternators with a maximum charge current of 160 amp.

Clear monitoring
Safety guaranteed: The Battery Mate LED display indicates whether the power input is active.

Robust and durable
Completely corrosion-proof material with aluminium heat sinks, the electronic components are encased in synthetic materials.

Fast installation
The synthetic end plates feature connection lugs, the solid bolt connections with nuts and locking rings ensure easy installation.

General specifications 1602 – 2 Outputs 1603 – 3 Outputs
Number of battery outlets 2 3
Dimensions, hxwxd 207 x 140 x 80 mm 207 x 140 x 80 mm
Weight 1 kg 1 kg
Max. output battery charger 120 A 120 A
Max. output alternator 160 A 160 A
Part Number
Size
Port Solent
Warehouse
99599133
2 Outputs
1
0
99599140
3 Outputs
0
0
