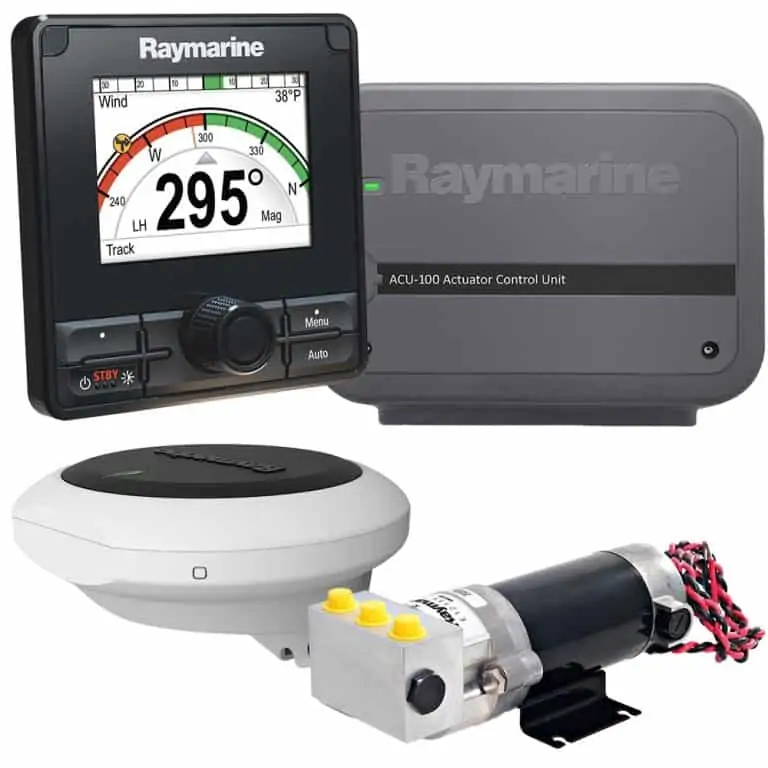

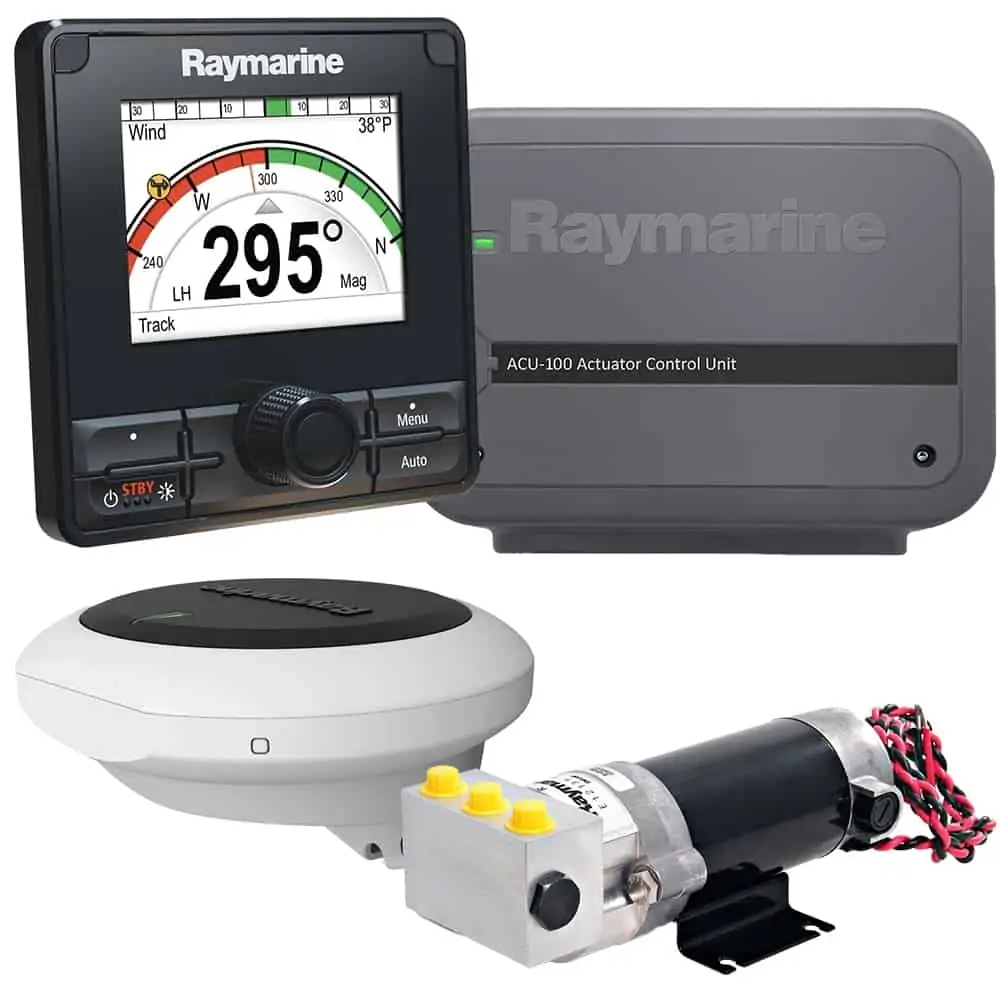

The EV-100 Power autopilot system consists of the revolutionary EV-sensor core, the fully-sealed and compact ACU-100, a P70RS control interface, and Raymarine’s new highly efficient 0.5 litre hydraulic pump.
Perfect for vessels with single outboard engines and hydraulic steering, benefit from world-leading autopilot performance at a truly head-turning price.
With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts and smaller cruising yachts (12v only).
Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.
As a true world-first innovation, the ACU-100 is fully sealed so may be mounted above decks on boats where space is limited.
The EV Sensor Core
At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.
Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.
0.5ltr Hydraulic Pump (12V)
The 0.5ltr Hydraulic Pump is intended to operate the boat’s steering mechanism as part of a Raymarine autopilot system. It is primarily designed for use on boats with an existing hydraulic steering system. Ram Capacity 50cc-110cc (3.1in3–6.7in3)
