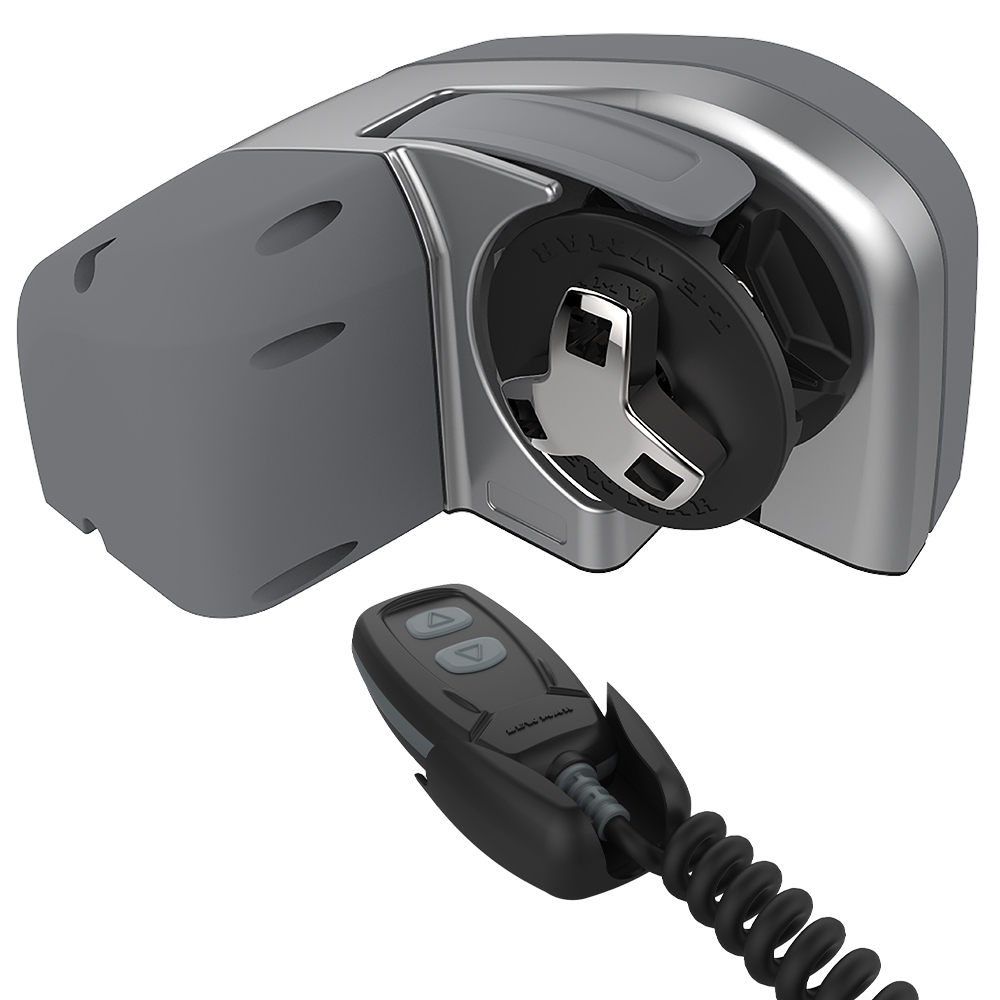

Lewmar HX1 Go 800 Windlass Kit 8mm

£ 1,196.78 £ 899.95

Out of Stock
This item is currently unavailable to purchase.

Want to be notified when this product is back in stock?

The HX1 range combines fresh external & internal design giving you a brand new strong and reliable horizontal windlass range, using the latest inline motors and epicyclical gearboxes. HX also features a strong and durable anodized aluminium chassis designed to withstand years of use.


  • 8mm gypsy
  • Motor: 800W 12 V
  • High efficiency epicyclical gearbox
  • Sealed waterproof unit requires minimum maintenance; (IP67 Rated)
  • Anodized aluminium chassis with a choice of polymer or anodized aluminium covers
  • IP67 rated as standard


  • Chain – 8mm
  • Rope – 12mm (3/Strand)
  • Voltage – 12v
  • Power – 800w
  • Max Pull – 1065kg
  • Working Load Limit – 266kg
  • Max Line Speed – 21m/min
  • Weight – 9kg

In the box

  • HX1 8mm Windlass
  • Contactor
  • Circuit breaker
  • Guarded rocker switch
