Swivel Double Eye
£ 15.95 - £ 24.95

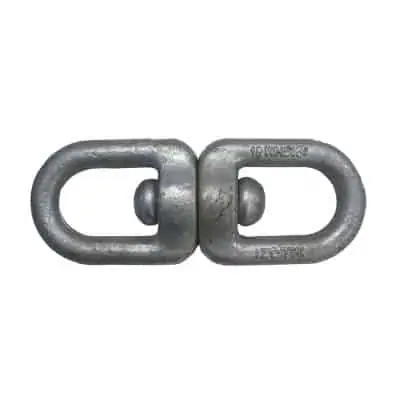

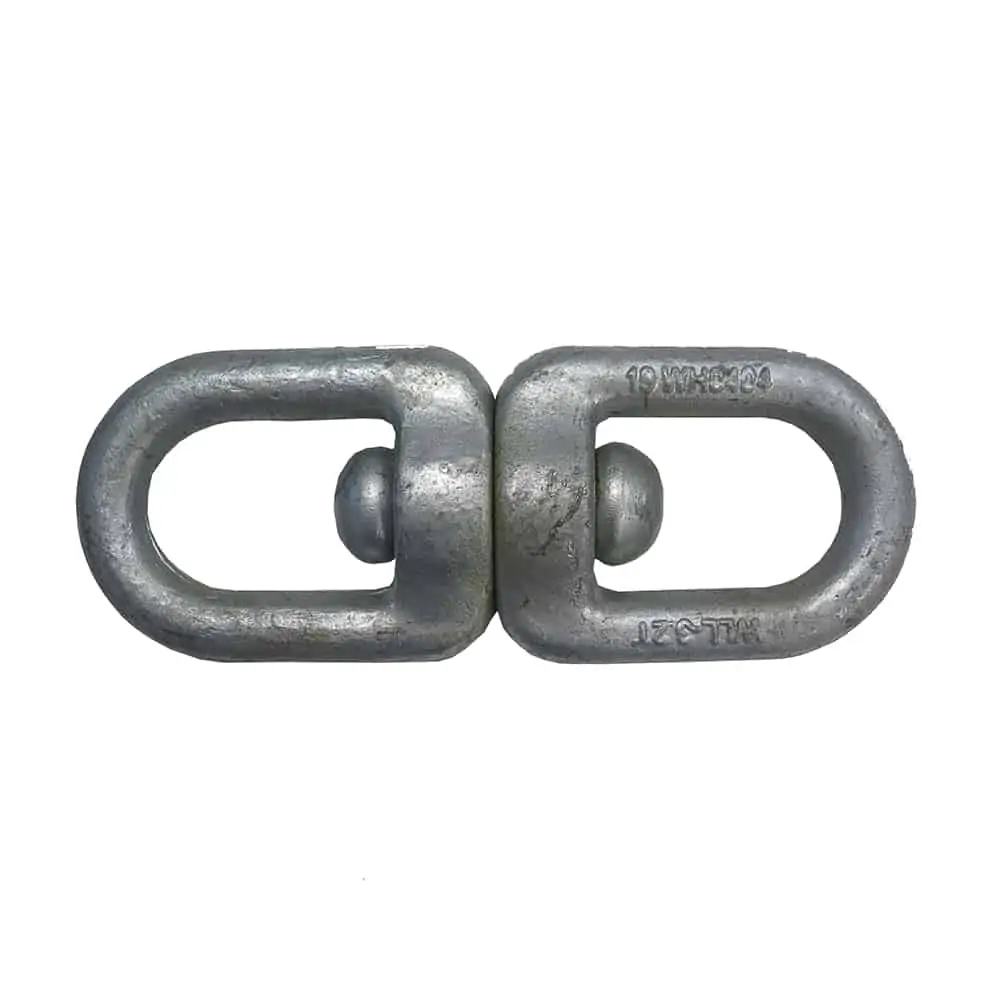

Double Eye Forged Mooring Swivel.
Features:
- Batch tested and certified
- Markings: W.L.L. – Size – Batch Number
- Material: High Tensile / Low Carbon
- Finish: Hot Dipped Galvanized

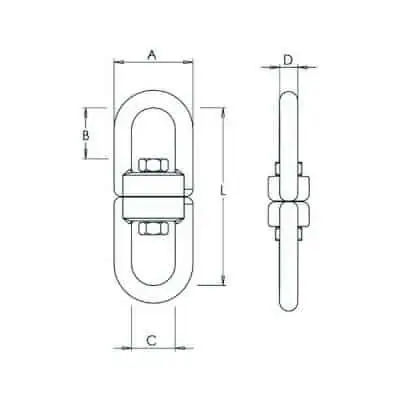

Size Guide:
| Part Code |
M.B.L. |
D |
A (mm) |
B |
C (mm) |
L (mm) |
Weight |
| 232.03.13 | 6.0 | 13 | 60 | 35 | 36 | 135 | 0.8 |
| 232.03.16 | 8.0 | 16 | 72 | 43 | 40 | 165 | 1.3 |
| 232.03.20 | 12.6 | 20 | 83 | 45 | 45 | 185 | 2.1 |
Part Number
Size / Colour
Port Solent
Warehouse
99484651
13mm / Galvanised
0
0
99484675
16mm / Galvanised
0
0
99484682
20mm / Galvanised
1
8
