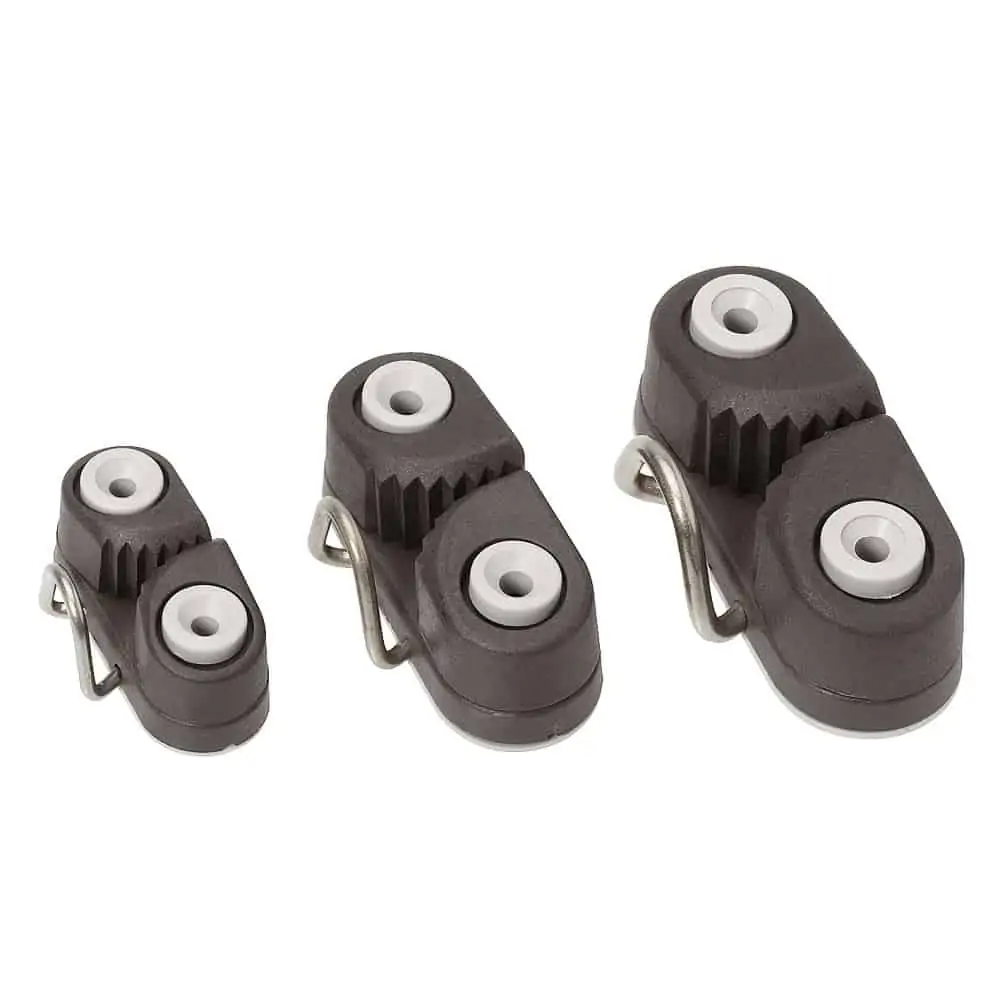

Barton ‘K’ Cam Cleat inc Fairlead
£21.95 - £29.95
Barton K Cam Cleat with Fairlead
Manufactured from a Kevlar composite and available in three sizes to accept lines up to 14mm in diameter. This advanced material offers performance advantages over carbon fibre and conventional glass-reinforced resins. K cams are very strong, lightweight and have excellent wear resistance. A progressive tooth design ensures maximum holding power on all types of line, whilst maintaining minimum wear to both cam and line.
| Mini 10mm | Midi 6-12mm | Maxi 10-14mm | |
| Weight | 20 g | 38 g | 60 g |
| Dimensions | 51 × 27 × 21 mm | 68 × 33 × 26 mm | 81 × 38 × 29 mm |
| Max rope diameter | 10mm (25/64″) | 12mm (1/2″) | 14mm (9/16″) |
| Fastenings | 4mm | 5mm | 5mm |
| Fastening centres | 30mm (1 3/16″) | 40mm (1 9/16″) | 50mm (2″) |
| Holding Power | 190kg (418lbs) | 230kg (507lbs) | 260kg (573lbs) |
Part Number
Size
Port Solent
Warehouse
99163198
10mm (mini)
1
12
99163150
6-12mm (midi)
3
12
99163211
10-14mm (maxi)
1
3
