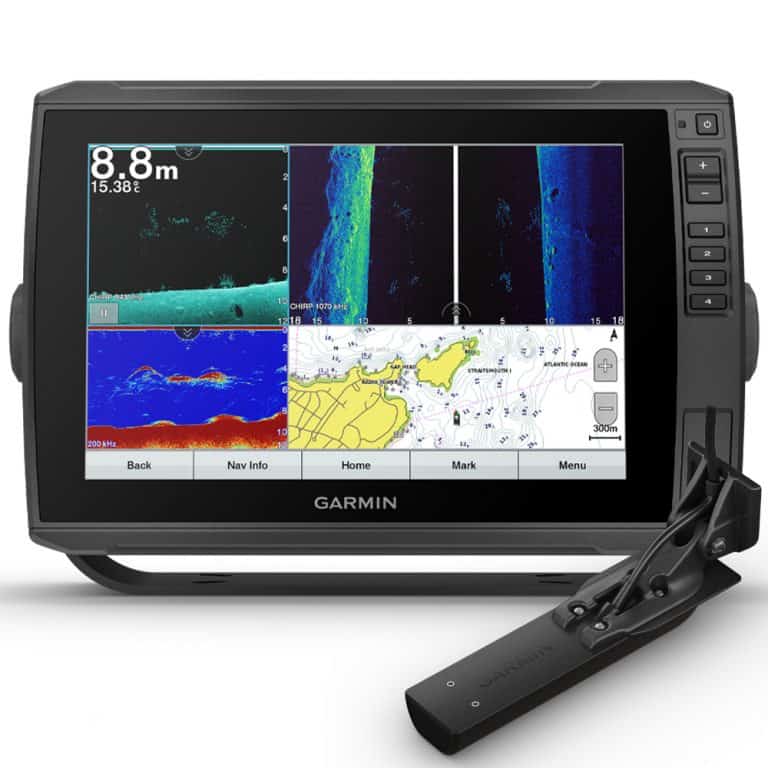

Garmin Echomap Ultra 102SV with GT56UHD Transom Transducer
The GT56 ultra high-definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.
The Garmin ECHOMAP Ultra 102sv combo, with its bright, sunlight-readable 10” keyed-assist touchscreen display, has all the tools you need for successful navigation and fishing. It includes built-in support for Garmin’s premium sonar and optional premium BlueChart® g3 charts and BlueChart® g3 Vision cartography with integrated data from Navionics®.
Garmin premium sonar support
The ECHOMAP Ultra 102sv combo includes built-in support for optional traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix™ LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system. Transducers sold separately.
Share sonar, waypoints and routes
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units.
Quickdraw contours to create your own maps
Instantly create personalised fishing maps on-screen with 0.3-metre contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.
Upgrade to the best maps on the water
Upgrade to premium BlueChart® g3 charts or BlueChart® g3 Vision cartography with integrated data from Navionics, which add Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.
The ultimate connected boating app
Built-in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen (when paired with a compatible smart phone). You can also plan a trip or pre-fish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Take your ECHOMAP Ultra with you
When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.
In the box
ECHOMAP Ultra 102sv
Tilt mount with quick release cradle
Physical dimensions: 295 x 195 x 98 mm
Display size: 21.7 cm x 13.6 cm; 10″ diagonal
Display resolution: 1280 x 800 pixels
Display type: WXGA display
Weight: 1.8 kg
Water rating: IPX7
Power consumption: 26 W
Antenna: Internal only
Mounting options: Bail or flush
Receiver: 10 Hz
Garmin Marine Network™ ports: 2 (large connector)
NMEA 0183: 1 in , 1 out
NMEA 2000: Yes
